40FT Side Wall Trailer
Home » 40FT Side Wall Trailer
40FT Side Wall Trailer For Sale

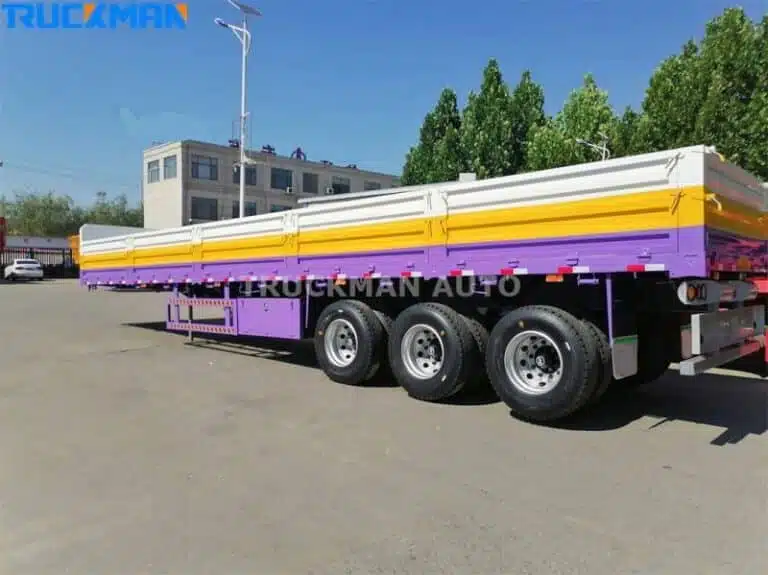

The 40FT Side Wall Trailer is made of manganese steel, which can carry 60 tonnes of cargo; this vehicle adopts the most advanced airbag suspension, which has the advantages of ultra-light, ultra-strong, corrosion-resistant, and so on. The vehicle’s first axle has a lifting function that allows it to run with only one axle when unloaded, significantly protecting against tire wear.
Specification
Detail | Specification |
---|---|
Axle | 4 axles, 4x13000kg, FUWA brand |
Tire | 315/80R22.5, 16 pcs, TRIANGLE brand |
Support Leg | 28 tons, JOST brand |
Kingpin | 3.5 inch heavy duty, JOST brand |
Brake System | WABCO brand brake system |
Suspension | Mechanical leaf spring or air suspension |
Material | Manganese steel |
Container Lock | 12 pcs |
Side Wall | 800mm |
Dimension | 12500x2500x2900mm |
Suspension Information
Suspension is a general term for all force-transmitting connecting devices between the frame and axle of a semi-trailer, which is used to transfer the force and torsion acting between the wheels and the frame, cushion the impact transmitted from the road surface to the frame or body, and reduce the vibration caused by this, to ensure that the trailer can run smoothly. Our 40FT sidewall trailer uses a heavy-duty model leaf spring, enhanced suspension rack, push rod, etc., to meet heavy-duty and bad road driving requests.
40FT SideWall Trailer Painting
40FT side wall trailers adopt the electrophoresis + powder spraying form, automated production coating uniformity, truly achieve the whole trailer without dead corners of the rust corrosion, and significantly improve the service life of the entire side wall trailer. After electrophoresis, the trailer has a stunning appearance; hardness, adhesion, corrosion resistance, impact performance, and penetration performance are incomparable to other coating processes, greatly enhancing the service life of the trailer.
Advantages
The 40FT side wall trailer axle is a lightweight design that ensures the reliability of the axle while reducing the overall axle mass by at least 50kg compared to conventional axles. In addition, it adopts the wheel bearing unit design, which eliminates the need to adjust the bearing clearance and facilitates maintenance and dismantling. This product can promise 500,000 kilometers of maintenance-free axle end under high speed and standard load road conditions, which reduces certain costs. It can also be supplied with square and round axles according to users’ needs.
- Price: $13,000-15,000
- Axle: 4 axles, 4x13,000
- Tire: 315/80R22.5 etc, 16 pcs
- Support Leg: 28 tons, JOST brand
- Tractor Pin: 3.5 inch heavy duty model
