40 Tons Side Wall Trailer
40 Tons Side Wall Trailer For Sale
40 ton side wall trailer mainly used for transporting agricultural and sideline products, daily necessities, and other cargoes. Compared to a flatbed semi-trailer, a side wall trailer is surrounded by a perimeter board, which prevents the goods from falling off during transport. The height of railings is 600mm, 800mm, etc., and can be customized according to requirements.
The 40-ton side wall trailer dimension is 12500x2500x2780mm, and the side wall height is 600mm. The tire is suitable for long distances, model 12R22.5, TRIANGLE brand.
Axle uses the light-duty model 12 tons, ZY brand. These brand parts are very suitable for standard-weight transportation. Support leg and tractor pins also use the world-famous brand JOST; JOST is a specialist in semi-trailer towing pins and outriggers.
It is also equipped with a 12-piece container lock for transporting containers of various sizes
Specification
| Detail | Specification |
|---|---|
| Axle | 3 axles, 3x12000kg, ZY or FUWA brand |
| Tire | 12R22.5, 12 pcs, TRIANGLE brand |
| Support Leg | 28 tons, JOST brand |
| Kingpin | 2 inch heavy duty, JOST brand |
| Brake System | WABCO brand brake system |
| Suspension | Mechanical leaf spring or air suspension |
| Material | Manganese steel |
| Container Lock | 12 pcs |
| Side Wall | 600mm |
| Dimension | 12500x2500x2780mm |

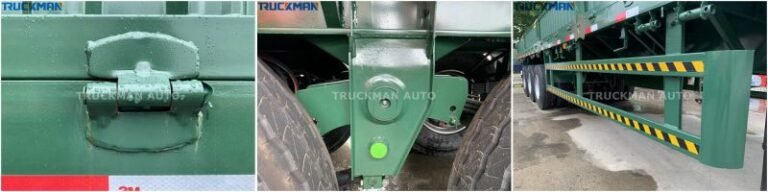

40 Ton SideWall Trailer Design Features

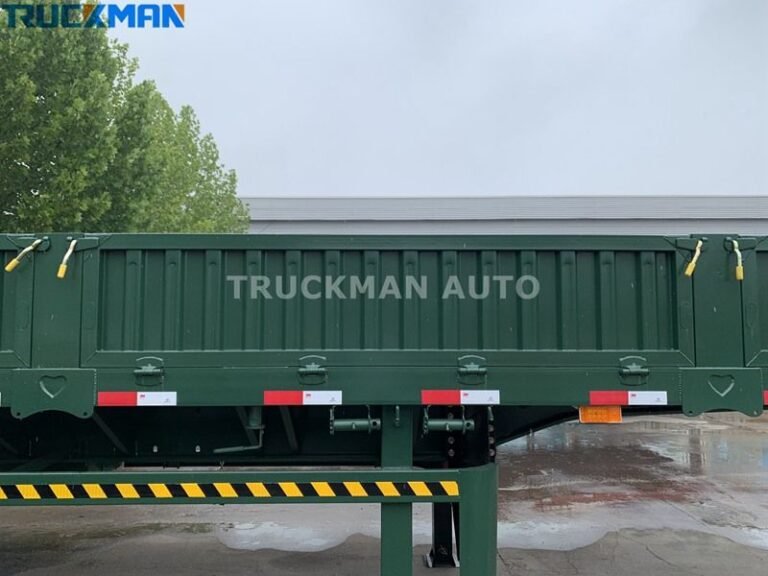

The side wall trailer side wall uses automatic welding tech to keep the welding quality. Two types of panels are available: horizontal and vertical corrugated panels.
According to the loading capacity, it can optional mechanical suspension and air suspension; air suspension can save fuel consumption, compared to automatic spring suspension, air suspension is less durable and more costly to maintain.

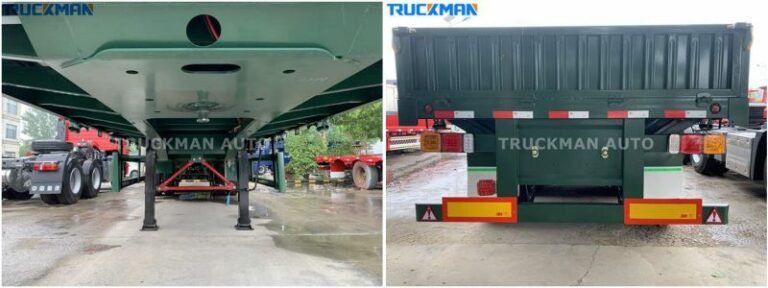

40 Tons Side Wall Trailer Advantages
Frame: The frame utilizes a space frame structure, expertly welded with longitudinal beams and integrated through-type cross beams. This construction effectively balances strength, rigidity, and toughness, ensuring a robust load-bearing capacity without deformation.
Structure: The primary beam adopts a through-beam design, while the longitudinal beam options include flat or gooseneck types. Web heights range from 400 to 500 units. Longitudinal beams are precision-welded using automatic submerged arc welding. The frame undergoes meticulous shot blasting treatment, and the cross beam is seamlessly integrated with the longitudinal shaft through welding.
Suspension System: An innovative suspension system is implemented, characterized by its exceptional strength and impact resistance. It maintains balanced axle loads, and the system’s tie rod angles are thoughtfully engineered to minimize tire-ground friction during rough rides, reducing tire wear. Additionally, adjustable tie rods allow axle spacing customization, effectively preventing wheel bias-grinding and gnawing issues.
- Price: $12,000-14,000
- Axle: 3 axles, 3x12,000
- Tire: 12R22.5 etc, 12 pcs
- Support Leg: 28 tons, JOST brand
- Tractor Pin: 2 inch heavy duty model
