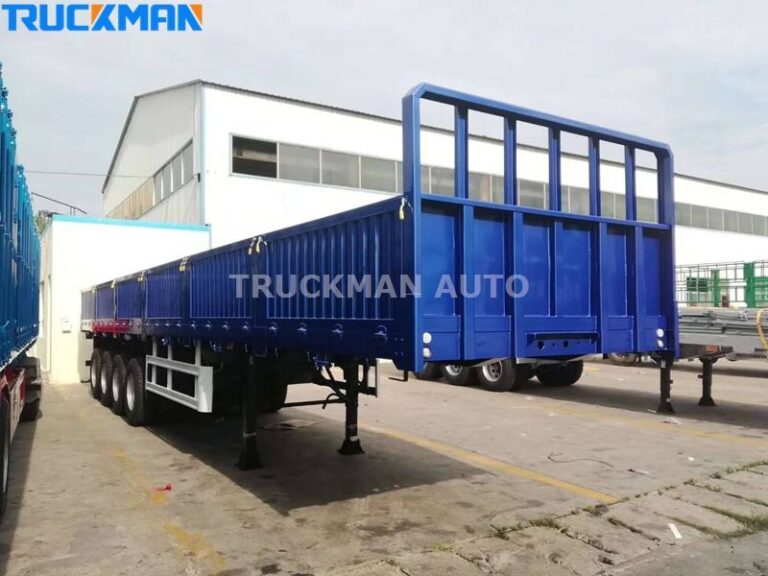

3 Axle Side Wall Trailer

3 Axle Side Wall Trailer For Sale

The 3 Axle Side Wall Trailer is made of manganese steel and can carry up to 60 tonnes of cargo. The trailer features state-of-the-art airbag suspension, which is ultra-lightweight, ultra-strong and corrosion-resistant. The vehicle has a lifting function on the first axle and can be driven with only one axle when empty, significantly preventing tire wear.

It is a multifunctional cargo carrier with removable side fences. It allows temporary conversion to a flatbed trailer structure for transporting more oversized and irregularly shaped cargo. It is used for transporting a wide range of types and sizes of cargo.

This model is vital for modern cargo transport, offering flexibility for a wide range of industries and the ability to adapt to the needs of transporting different types of goods. It is currently used in various industries, such as logistics, construction, agriculture, manufacturing, and international trade.

3 axle side wall trailer For Sale-SideWall Trailer


Detail Specification
Axle 3 axles, 3x13000kg, FUWA brand
Tire 315/80R22.5, 12 pcs, TRIANGLE brand
Support Leg 28 tons, JOST brand
Kingpin 3.5 inch heavy duty, JOST brand
Brake System WABCO brand brake system
Suspension Mechanical leaf spring or air suspension
Material Manganese steel
Container Lock 12 pcs
Side Wall 800mm
Dimension 12500x2500x2900mm

Air Suspension System

The three-axle sidewall trailer adopts airbag suspension; its most significant feature is an air spring inside the airbag. Compared with other breaks, air suspension buffer force is better and can effectively protect the goods and improve driving comfort. It is mainly used to transport precision instruments, hazardous chemicals, and so on.

1. Good shock absorption. In addition to improving driving comfort, it is also a protection for the cargo. 2.

2. Reduce load pressure. Extend the service life of axle and semi-trailer, and reduce the cost of the vehicle to a certain extent.

3. Lighter weight. Lighter weight, more free load space under standard load, fuel saving, energy saving, and high efficiency.

4. Long service life. The service life can be up to 2-3 times that of steel plate springs, which can help vehicle owners save costs.

Tri axle side wall semitrailer Air Suspensions

Extra Fuel Tank

The tri-axle sidewall trailer can add a 1000L fuel tank for cross-border transport. It saves refueling time, improves truck range, and increases transport efficiency. The fuel tank has anti-collision and anti-theft protection, reducing customer maintenance costs. The material is carbon steel, optional aluminum alloy, reducing weight and fuel consumption.

Side Wall Trailer 1000L Mailbox

3 Axle Side Wall Trailer Advantages

  1. Advanced computer-aided design software is adopted for optimization, which ensures the rationality of the whole vehicle structure to the maximum extent.
  2. Finite elements and scientifically calibrated have analyzed the frame, the axle load distribution is reasonable, and the chassis is equipped with air suspension and disc brake travel mechanism.
  3. The frame is also designed as a gooseneck structure and adopts a locally reinforced structure with lightweight, high strength, and strong torsion resistance.
3 Axle Side Wall Trailer Components

Industry Applications

Logistics & Freight Industry: The sidewall structure of these trailers enables them to accommodate a wide range of cargoes, from small parcels to large loads. Ensuring that the load reaches its destination quickly and efficiently

Construction and engineering industry: The specially designed sidewall structure allows for the loading and unloading of a wide range of construction materials, such as steel, concrete slabs, bricks, and timber, in addition to the ability to transport large construction equipment after the fence has been removed, providing the necessary support for the construction site.

Manufacturing and industrial sectors: Manufacturing and industrial sectors often require transporting a wide range of industrial machinery and equipment, such as pressure vessels, generators, wind turbines, and mining equipment.

Container transport: capable of accommodating international containers to transport goods from ports and cargo centers to inland or different cities
