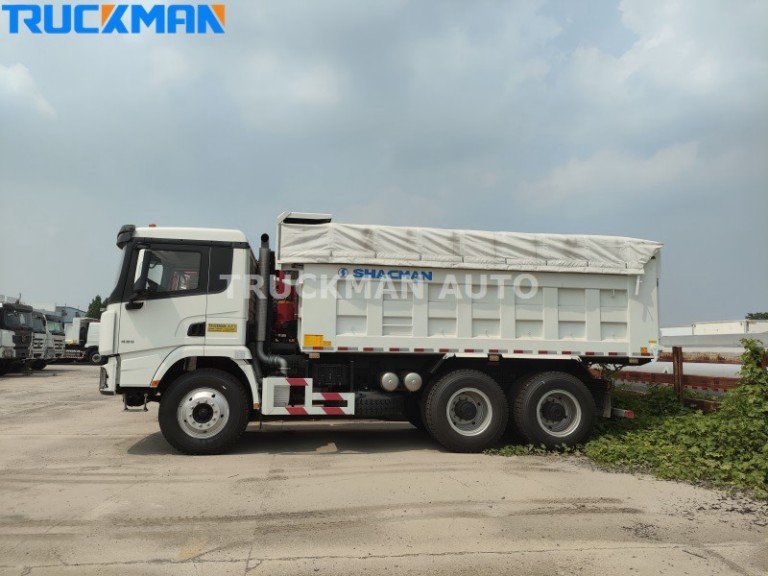

SHACMAN X3000 6×4 20 Cubic Meter Dump Truck

Home » Heavy Duty Dump Truck » SHACMAN X3000 6×4 20 Cubic Meter Dump Truck

SHACMAN X3000 6x4 20 Cubic Meter Dump Truck For Sale

The SHACMAN X3000 dump truck is powered by a CUMMINS engine with high horsepower, strong power and superior performance. The cab is equipped with a warning light above, which can play a warning role in rainy and foggy days and improve the safety of traveling. The cargo box is equipped with a tarpaulin cover, which can reduce the fall of goods, especially when traveling in the city, can reduce pollution and protect the environment.

SHACMAN X3000 6x4 Dump Truck Specification

Engine: ISME420, 420HP, EURO 3 emission standard

Cabin: X3000, with one bed, A/C

Gearbox: 10JSD180, 10 forward gears, 2 reverse gears

Tire: 12.00R24, 10+1 pcs

Fuel Tank: 300L

Color: Optional

Cargo Body: 5600x2300x1500mm

Dimension: 8500x2580x3450mm

SHACMAN X3000 6×4 20 Cubic Meter Dump Truck specification only for your reference, we can manufacture other model dump truck basic your request.

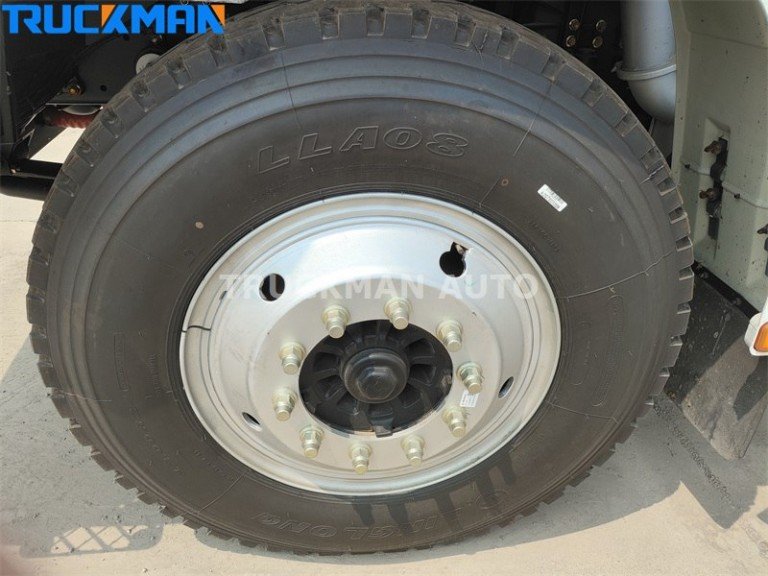

SHACMAN X3000 6x4 Tire

The SHACMAN 6×4 dump truck adopts 12.00R24 tires, the tire tread is wider, the contact area between the tire and the ground is larger, with better grip, in our daily driving process, it can effectively reduce the phenomenon of tire skidding, and enhance the stability when driving. At the same time, the rigidity of the tire wall is further improved, which provides better support to the vehicle during lateral cornering. The tire has excellent traction and braking power compared to ordinary tires, and has a stronger load-carrying capacity.

SHACMAN X3000 6x4 Dump Truck Axle

The SHACMAN 20 Cubic Meter dump truck is equipped with 16 tons double-stage deceleration drive axle with higher gear strength. The main decelerator adopts Oerlikon equal high-toothed bevel gears with high gear strength and long service life; the axle casing is casted by high-strength materials with high load carrying capacity. The axle head is of one-section press fitting, with reliable structure. Hub bearing load distribution is reasonable, long life, high reliability.
