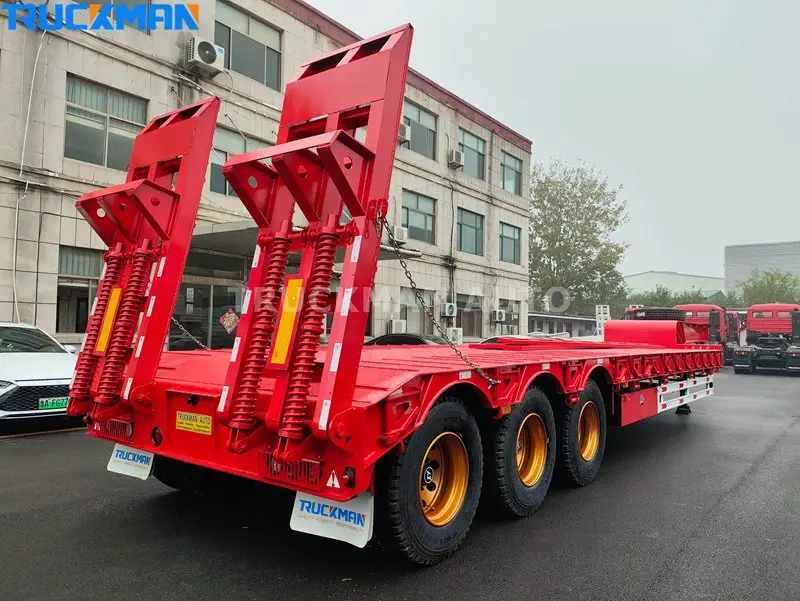

50 Ton Low Bed Trailer
50 Ton Low Bed Trailer For Sale
The 50 Ton low bed trailer is an excellent transport helper; he can transport a wide range of goods with outstanding reliability. With the advanced production technology, reliable quality parts make 50-ton low-bed trailers viral in the logistics industry. The shallow loading platform makes it easier to maneuver large cargoes during loading and unloading without the risk of overturning.
Low Bed Trailer Specification
| Detail | Specification |
| Axle | 3 axles, 3x13000kg, FUWA brand |
| Tire | 315/80R22.5, 12 pcs, TRIANGLE brand |
| Support Leg | 28 tons, JOST brand |
| Kingpin | 3.5 inch heavy duty, JOST brand |
| Brake System | WABCO brand brake system |
| Suspension | Mechanical leaf spring |
| Material | High strength steel |
| Ladder Type | Spring model |
| Loading Platform | 9700x3000x1300mm (depends on use) |
| Dimension | 13000x3000x3280mm (depends on use) |
50 Ton Low Bed Trailer Ladder
The 50-ton low bed trailer has three models: mechanical spring ladder, hydraulic ladder, and folding ladder. Here are the various climbing ladders introduced:
Mechanical spring ladder: This climbing ladder is the most common and the least expensive to purchase and maintain. It is usually necessary to manually lower and retract the ladder by hand.
Hydraulic ladder: Hydraulic climbing ladders are great for freeing up staffing and can be lowered and raised very quickly by simply operating a switch. However, hydraulic cylinders require regular maintenance and are expensive to maintain.
Folding ladder: The primary purpose of the folding ladder is to reduce the ladder’s height, which is ideal for traveling on roads with height restrictions.
50 Ton Low Bed Trailer Optional Parts
Axle: The axle loading capacity is from 12 to 20 tons—brands like FUWA, ZY, BPW, etc., durable brand optional.
Tire: The low bed trailer tire model has an optional tubeless and radial model, models like 315/80R22.5, 12.00R20, etc. A brand can choose the LONG LONG, TRIANGLE, and CHENGSHAN.
Support Leg: The support leg of the low bed trailer has 24 tons, 28 tons, and 32 tons; the brand is JOST, FUWA, and YAHUA.
50 Tons Low Bed Trailer Rust Prevention
Our TRUCKMAN 50 ton low bed trailer is extremely rust resistant. The body is first shot blasted to remove surface magazines and enhance paint adhesion. Secondly, two coats of primer will be applied by electrostatic powder coating process, which can effectively protect the steel. Finally, the top coat is applied and the paint is baked to accelerate the drying of the paint and further improve the paint adhesion.
- Price: $10,000-15,000
- Axle: 3 axles, 3x13,000KG
- Tire: 12R22.5, 315/80R22.5 etc, 12 pcs
- Support Leg: 28 tons, JOST brand
- Tractor Pin: 3.5 inch heavy duty model
