40 Feet-FT Low Bed Trailer

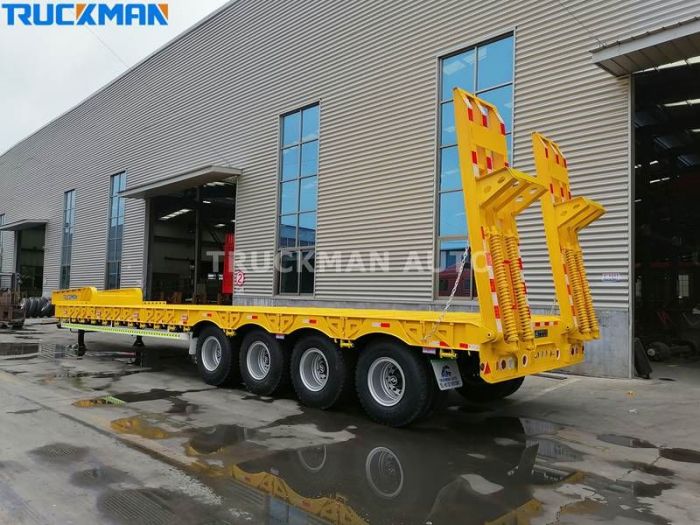

40 Feet-FT Low Bed Trailer For Sale

The 40 feet-ft low bed trailer, also called 40FT low bed trailer, has a loading platform with a 12-pcs container lock to transport all kinds of containers. Due to the common platform, it’s easy to pass through bridges, tunnels, and other places with height restrictions. The 40 Foot low bed trailer can also transport heavy-duty machinery, such as excavators, mining equipment, and immense power stations. Realized two uses for one vehicle, bringing more economic benefits to customers.

40 Feet-FT Low Bed Trailer For Sale

Low Bed Trailer Specification

Detail Specification
Axle 3 axles, 3x16000kg, FUWA brand
Tire 12.00R20, 12 pcs, TRIANGLE brand
Support Leg 28 tons, JOST brand
Kingpin 3.5 inch heavy duty, JOST brand
Brake System WABCO brand brake system
Suspension Mechanical leaf spring
Material High strength steel
Ladder Type Spring model
Loading Platform 12400x3000x1300mm (depends on use)
Dimension 15820x3000x3280mm (depends on use)

40 FT Low Bed Trailer Design

The 40 feet-ft low bed trailer loading platform size is 12400x3000mm for loading 2x20ft container and 1x40HQ container. The loading platform has a 12-pcs container lock, used to secure containers to prevent them from falling off during transport. The main beam height reaches 500mm, guaranteed to carry 80 tonnes. In addition, the width of the ladder is 850mm, which makes it easier to load and unload large machines. The length of the gooseneck has been increased to 3200mm, increasing the tensile strength of the low bed trailer.

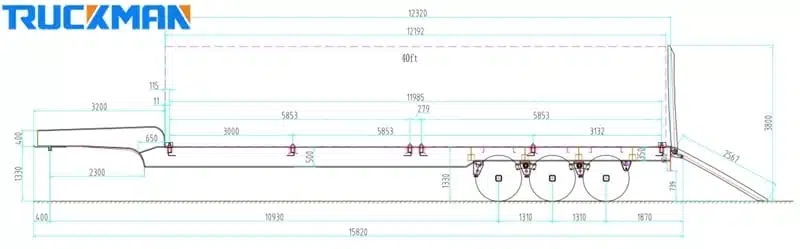

40ft Low Bed Trailer Drawings

40 Feet-FT Low Bed Trailer Details

40 FT low bed trailers use durable brands of critical accessories such as FUWA axles, TRIANGLE tires, JOST support legs, and tractor pins are used. In addition, our low bed trailer comes with a lot of extra design to help you use the low bed trailer better. Extension plates make the low bed trailer wider. 300 mm high side beams can make the side beams’ load-bearing capacity stronger. In addition, we put a lot of safety alert labels on top of the low bed trailer body, which can make pedestrians and vehicles spot us from a long way away. This improves driving safety.

40 Feet-FT Low Bed Trailer detailed drawing

40 Feet Low Bed Trailer Material

While many in the market use Q355 manganese plates for low-bed trailers, TRUCKMAN uses T700 high-strength steel, which has a much higher load-bearing capacity. T700 high-strength steel has a powerful bearing capacity, yield strength of 700Mpa, compared with the general Q355, yield strength of only 355Mpa. With the same thickness, T700 high-strength steel weighs less, and the vehicle’s deadweight is lighter. A low-bed trailer made of T700 steel can pull more loads within the weight limit.

Materials used for lowbed trailer

40 Feet-FT Low Bed Trailer Automatic Submerge Arc Welding Tech

Our low bed trailer main beam adopts the automatic submerged arc welding technology. Compared with traditional manual welding, the automated submerged arc welding technology has the features of a high degree of automation, convenient control system operation, reliable performance, strong anti-interference ability, mature and stable, uniform and beautiful welding seam, and not easy-to-crack.

Low Bed Trailer soldered
Low Bed Trailer real image -TRUCKMAN AUTOMOBILE
