3 Axle Low Bed Trailer

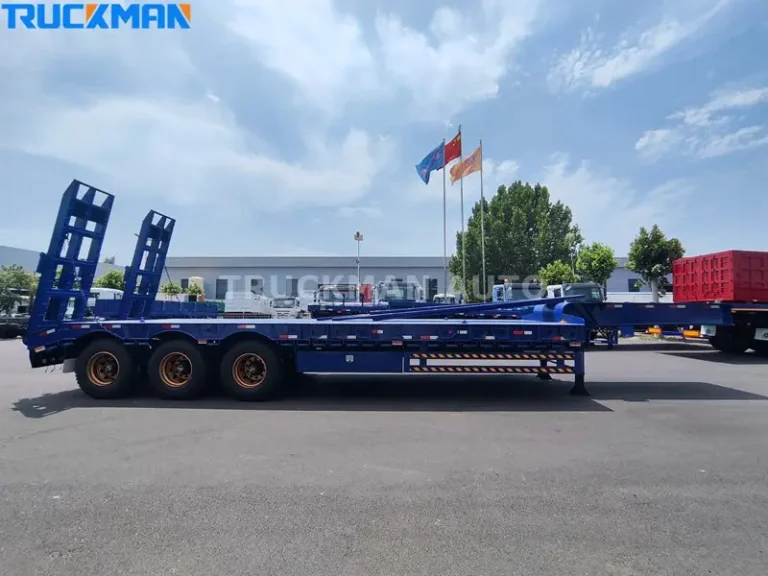

3 Axle Low Bed Trailer For Sale

The 3 axle low bed trailer is specialized for transporting heavy equipment and oversized cargo. It has a stable platform structure and a low chassis height to facilitate loading and unloading. The platform of this low-bed trailer is designed with a standard chassis, making loading and unloading easier. The length and width of the platform can be customized to suit different sizes and shapes of cargo.

3 axle trailers for sale

Technical Specifications

Detail Specification
Axle 3 axles, 3x16000kg, FUWA brand
Tire 12.00R20, 12 pcs, TRIANGLE brand
Support Leg 28 tons, JOST brand
Kingpin 3.5 inch heavy duty, JOST brand
Brake System WABCO brand brake system
Suspension Mechanical leaf spring
Material High strength steel
Ladder Type Spring model
Loading Platform 10000x3000x1300mm (depends on use)
Dimension 14000x3000x2980mm (depends on use)

3 Axle Lowbed Trailer Design Detail

  1. Features an open platform design with no fencing for easy loading and unloading. Suitable for transporting heavy equipment and oversized cargo.
  2. Container locks are added to the bottom of the platform for transporting various types of containers to improve transport efficiency.
  3. For easy loading and unloading, the tri axle low bed trailer has lower ramps for loading and unloading goods at different heights.
  4. To ensure safe transport, the 3 axle lowbed trailer has reflective signage, a lighting system, and a safety locking device. These facilities help improve visibility and ensure the cargo remains stable and secure during transport.
3 Axle semi Trailer Design Details

Tri Axle Equipment Trailer Working Range

Construction Industry: The trailer 3 axle is commonly used in the construction industry to transport heavy machinery such as excavators, bulldozers, cranes, and loaders. Its low platform height and high load capacity make it ideal for moving construction equipment to and from job sites.

Mining &Quarrying: The mining and quarrying industries often require the transportation of large mining equipment, including dump trucks, drilling rigs, and excavators. The 3-axle low-bed trailer can handle heavy loads and provide stability during transport over rugged terrains.

Energy Sector: In the energy sector, this type of trailer is used to transport oversized equipment for power plants, oil refineries, and renewable energy projects. It can handle large generators, turbines, transformers, and other heavy components required in the energy industry.

Infrastructure Projects: Infrastructure projects such as bridge construction, road development, and railway expansion often involve transporting heavy machinery and construction materials. The 3 Axles Low-Bed Semi-Trailer can efficiently transport these items to the project sites.

3 Axle Lowbed Working Range

3 Axle Low Bed Trailer Production Tech

Laser cutting: Compared with plasma cutting, laser cutting technology can improve the precision of steel cutting, which also helps the life of semi-trailers.

Automatic submerged arc welding: By using automated submerged arc welding technology, the welding quality of the main beam can be improved, making the weld seam more beautiful, robust, and not easy to crack. And save production time.

Shot blasting: Before painting, the low bed trailer must be shot blasting, which can remove the impurities on the surface of the standard bed trailer and improve the adhesion ability of the paint.

Electrostatic powder spraying + baking paint: Electrostatic powder spraying can make the color evenly spread on the surface of the low bed trailer, which will not produce the problem of paint flowing. Baking paint can further enhance the paint’s adhesion ability and improve the color’s brightness.

Low bed semi-trailer production

Lowbed Trailers Shipment Detail

Shipment way: 3 axle low bed trailers be stacked on top of each other to reduce overall size and save on shipping costs. And can make shipment work via the bulk cargo, RORO, or container vessel.

Packaging and anti-corrosion: We will cover a waterproof tarp for the low-bed trailer and spray wax to avoid rust. You also can put a low bed trailer into the vessel inside, making suitable protection.

Insurance: We have insurance coverage for the low bed trailer during transit. This can help protect against any potential damage or loss during shipping.

Tracking: After the vessel leaves the China shipping port, we will supply you with a website to follow the boat and update you with the vessel location every five days.

3 Axle Low Bed Trailer Shipment Detail
Low Bed Trailer real image -TRUCKMAN AUTOMOBILE
