100 Ton Removable Gooseneck
100 Ton Removable Gooseneck For Sale
Compared with regular low bed trailers, the advantage of 100 Ton Removable Gooseneck is that the load capacity is large, the axle’s load is more uniform, and the turning radius is small. At the same time, the longitudinal tie rod adopts the form of double rows, which can reduce the vehicle’s left and right oscillation while traveling.
Specification
| Detail | Specification |
|---|---|
| Axle | 3 line 6 axles, FUWA brand |
| Tire | 8.25R20, 24 pcs, TRIANGLE brand |
| Engine | 4 cylinder, WEICHAI or YUCHAI |
| Kingpin | 3.5 inch heavy duty, JOST brand |
| Brake System | WABCO brand brake system |
| Suspension | Mechanical leaf spring |
| Material | High strength steel |
| Loading Capacity | 100,000kg |
| Loading Platform | 9500x3000x1300mm (depends on use) |
| Dimension | 14500x3000x3280mm (depends on use) |
The 100 ton removable gooseneck trailer specification only for your reference, we can accept customization.

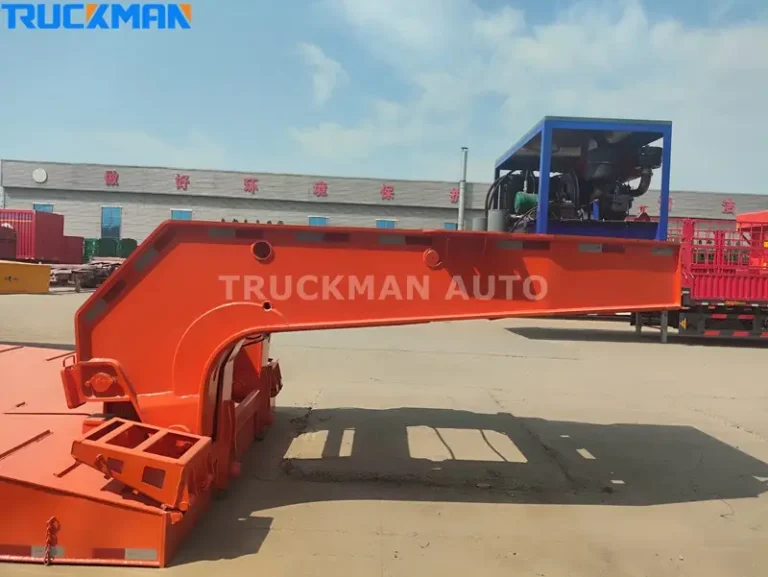

Gooseneck Detail
100 ton removable gooseneck trailer by removing the gooseneck to achieve the loading cargoes, and the gooseneck also serves as a load-bearer. This requires the use of special steel for the gooseneck, such as T700 high-strength steel or wear-resistant steel. In addition, the quality of welding is also very high, and it is best to use fully automatic submerged arc welding welding.
100 Ton Removable Gooseneck Brake System
Air braking: Removable gooseneck trailer can use the energy of compressed air to realize the braking effect of the braking principle, mainly used for removable gooseneck trailer air brake system.
Sassafras braking: The braking principle that utilizes sassafras force to achieve the braking effect is mainly used in the wheeled braking system of removable gooseneck trailer.
Hydraulic braking: Braking principle that utilizes hydraulic pressure to achieve braking effect, mainly used in hydraulic braking systems for removable gooseneck trailer.
Removable Gooseneck Application Industry
Mining Industry: The removable gooseneck trailer is suitable for mining equipment transport, such as ore washing equipment, excavation equipment, etc.
Logistics Industry: The removable gooseneck trailer transports large equipment for long-distance transportation, like alternators and extra heavy cargo.
Construction Industry: The removable gooseneck trailer can transport building materials, such as large prefabricated blocks, steel bars, etc.
- Price: $23,700
- Axle: 3 line, 6 axles
- Tire: 8.25R20, 24 pcs
- Tractor Pin: 3.5 inch heavy duty model
