Container Skeleton Trailer

Container Skeleton Trailer For Sale

Container skeleton trailer has a reasonable structure, high strength, beautiful appearance and so on, and compared with the container flatbed trailer, this transport vehicle also has a lighter quality, more fuel-efficient features, to a certain extent, to improve the efficiency of the transport, save more can save the cost of transport. The limitation is that only containers can be transported, which is a single use.

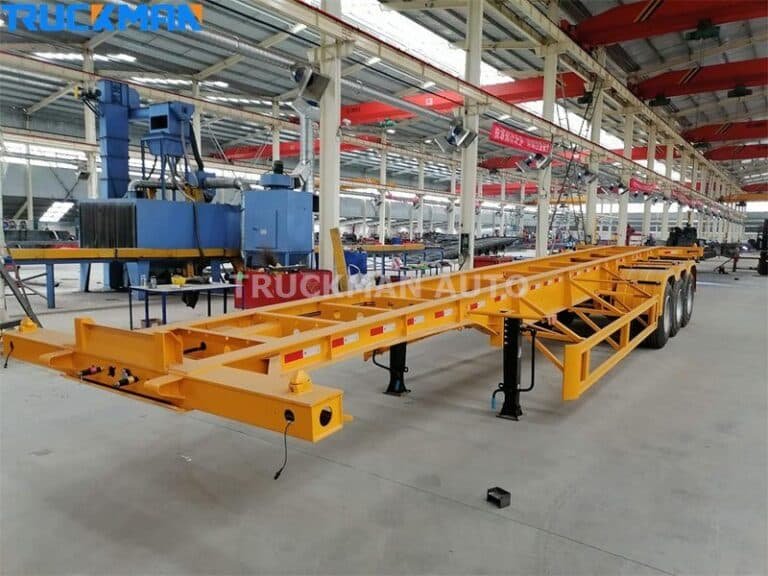

20ft Multi-Function Skeletal Trailer For Sale

Specification

DetailSpecification
Axle3 axles, 3x13000kg, FUWA brand
Tire12R22.5, 12 pcs, TRIANGLE brand
Support Leg28 tons, JOST brand
Kingpin2 inch heavy duty, JOST brand
Brake SystemWABCO brand brake system
SuspensionMechanical leaf spring
MaterialManganese steel
Container Lock12 pcs
PaintingPolyurethane
Dimension12500x2500x1580mm

Container Skeleton Trailer Tow Pins

The tow pin is integral to connecting the container trailer with the tractor and bearing the traction force related to the towing seat. The diameter of the towing pin can be divided into 50 and 90 (mm) kinds, according to the assembly method, and can be divided into welded and assembly types. They are generally forged from carbon steel and alloy steel. Our container skeleton trailers use JOST brand 50 mm, 2-inch kingpins for standard cargo transport.

Container Skeleton Trailer Tow Pins

Fixed Skeletal Electrical System

Container Skeleton Trailer Electrical System The electrical system of the skeleton trailer consists of seven-hole sockets, cables, an air circuit, various lamps and lanterns, etc. The electrical system of the skeleton trailer is composed of the following components: The electrical system of a container skeleton trailer is mainly used for lighting and signaling. The circuit is primarily used for lighting and signaling, and the air circuit is used for standard and emergency braking. Our trailers have high-temperature and corrosion-resistant pipes and electrical circuits for long service life.

Multi-Function Skeleton Trailer Electrical System

Industries

Container skeleton trailers are widely used in the shipping and freight industry to transport containers between ports, terminals, and distribution centers. They are essential for transporting containers from ships to trucks or trains. Logistics companies and warehouses utilize skeleton container trailers to handle and store shipping containers efficiently. Container skeleton trailers transport containers to warehouses, distribution centers, and customer locations.

Skeleton Trailer Accessories

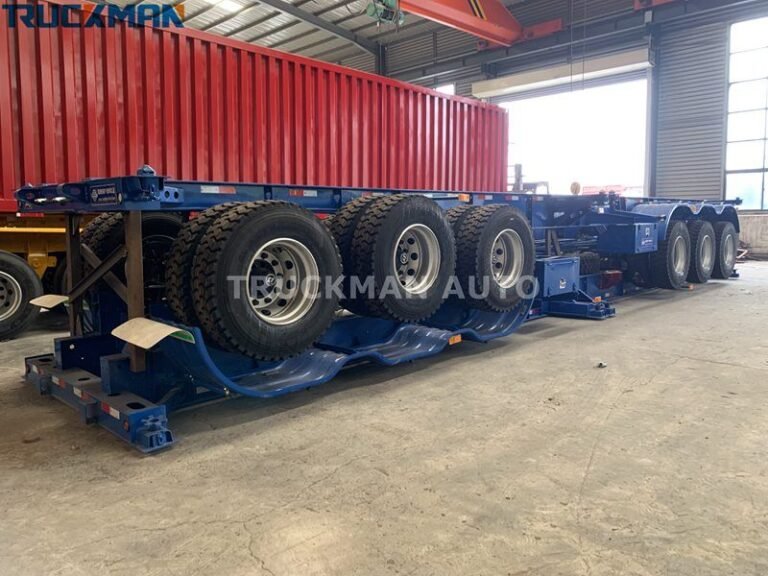

Container Skeleton Trailer Shipment Pictures

3 Axle Container Skeleton Trailers can be transported in containers, and the sea freight cost is twice as low as that of bulk carriers. Containers protect the trailer well from rust problems and scratches on the paintwork. It is also possible to stack 2 or 3 units together to reduce the overall size of the van, thus saving on transport costs. However, they need to be well protected against rust and protection.

Skeleton Trailer Shipment
Container Semi Trailer For Sale
