80 Ton Removable Gooseneck Trailer

80 Ton Removable Gooseneck Trailer For Sale

The 3 axles 80 ton removable Gooseneck Trailer can loading 80 tons different cargoes, per axle loading capacity can reach to 20 tons, and tire is adopt the heavy duty 12.00R20 radial model. High load-bearing capacity, abrasion-resistant. T700 high strength steel used for whole trailer body, 5 times more load-bearing capacity than ordinary steel.

Efficient and Reliable 80 Ton RGN Trailer for Heavy Loads--TRUCKMAN AUTOMOBILE

Specification

Detail Specification
Axle 3 axles, 3x20000kg, FUWA brand
Tire 12.00R20, 12 pcs, TRIANGLE brand
Engine 4 cylinder, WEICHAI or YUCHAI
Kingpin 3.5 inch heavy duty, JOST brand
Brake System WABCO brand brake system
Suspension Mechanical leaf spring
Material High strength steel
Loading Capacity 80,000kg
Loading Platform 9500x3000x1300mm (depends on use)
Dimension 14500x3000x3280mm (depends on use)

The 80 ton removable gooseneck trailer specification only for your reference, we can accept customization.

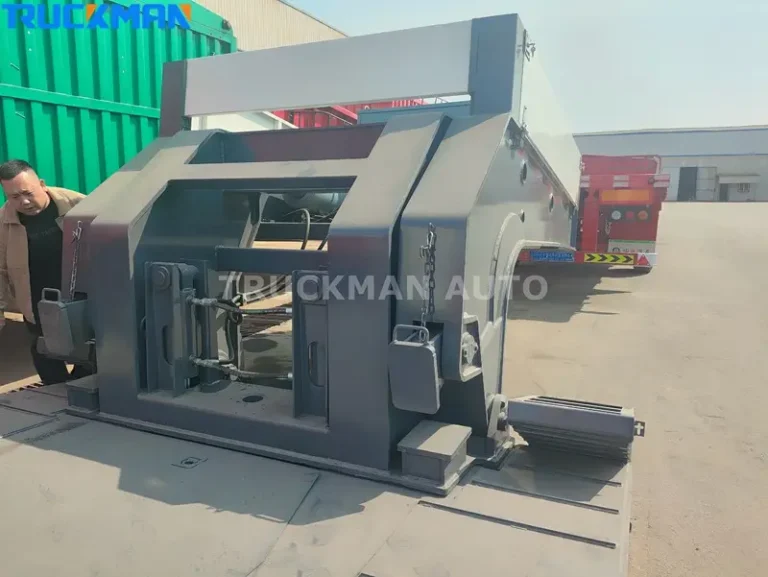

Removable Gooseneck Power Unit

80 ton removable gooseneck trailer have the power unit (engine and hydraulic system) It quickly helps the gooseneck to disengage from the semi-trailer for fast loading and unloading of cargo. Powertrain brand including WEICHAI, YUCHAI etc. 4 cylinder, EURO 2 engine, suitable for Africa market. And maintenance is easy and low cost.

Efficient and Reliable 80 Ton RGN Trailer for Heavy Loads--TRUCKMAN AUTOMOBILE

Removable Gooseneck Additional Parts

The removable gooseneck trailer have many additional parts, such as rope tighteners, rope hooks, wider plate, container locks, etc. The rope tighteners and hooks can effectively fix the goods and prevent them from falling off during transportation. The wider plate can extend the loading platform dimension achieve loading more cargoes purpose. By installing a container lock on the loading platform, various types of containers can be transported.

Removable Gooseneck Trailer Additional Parts

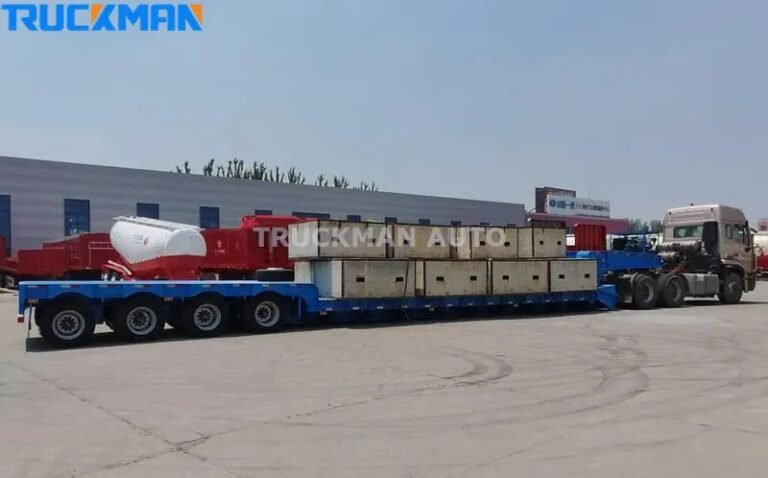

80 Ton Removable Gooseneck Test Item

Before shipment, all parts will make test to confirm no problem then will arrange the delivery. Such as all bolt will tighten again to prevent loss of accessories due to loose screws during transportation. Check all rubber parts for air leakage; brake accessories for normal braking; lights for normal light; check the weld have cracks, or cracking issues; check for paint leakage etc issue. Guaranteed to be ready for use as soon as the customer receives it.

Removable Gooseneck Trailer Test Item
Low Bed Trailer real image -TRUCKMAN AUTOMOBILE
