50 Ton Removable Gooseneck Trailer

50 Ton Removable Gooseneck Trailer For Sale

The 50 ton removable goosebeck trailer mainly used for the heavy duty machinery and mining equipment haulage. With low loading platform, low center of gravity of transportation, Ideal for high dimensional cargo and areas with height restrictions. The axle, material and suspension all enhanced version, confirm the bear capacity.

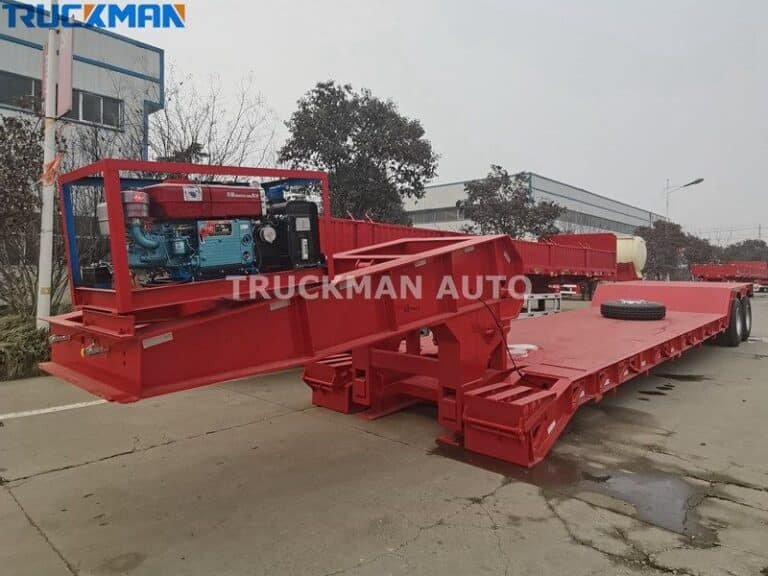

50 Ton Removable Gooseneck Trailer-TRUCKMAN AUTOMOBILE

Specification

Detail Specification
Axle 2 axles 4 line, FUWA brand
Tire 315/80R22.5, 16 pcs, TRIANGLE brand
Engine 4 cylinder, WEICHAI or YUCHAI
Kingpin 3.5 inch heavy duty, JOST brand
Brake System WABCO brand brake system
Suspension Mechanical leaf spring
Material High strength steel
Loading Capacity 50,000kg
Loading Platform 7500x3000x1300mm (depends on use)
Dimension 13000x3000x3280mm (depends on use)

The 50 ton removable gooseneck specification only for your reference, we can accept customization.

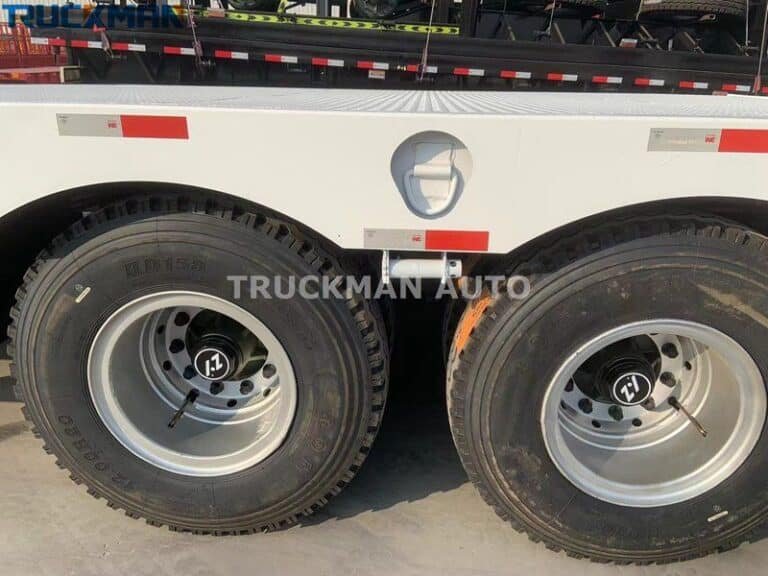

50 Ton Removable Gooseneck Trailer Axle

Removable gooseneck trailer Selection of imported or domestic high-quality brand axles, brand like FUWA, BPW etc. Axle model is America and Germany type, high common rate of spare parts and easy maintenance. Equipped with thickened brake pads, optional ABS anti-lock braking system, to improve the safety of vehicle driving. Fast braking response.

Removable Gooseneck Trailer Axle-TRUCKMAN AUTOMOBILE

Removable Gooseneck VS Low Bed Trailer

Loading and unloading method: The machinery can directly drive to a removable gooseneck trailer loading platform from the front parts, which is very convenient. The low bed trailer needs to use the ladder to load the goods.

Carrying Capacity: The removable gooseneck trailer can load more cargo than the low bed trailer; the max loading capacity can reach 150 tons.

Purchase Cost: The removable gooseneck trailer purchase cost is higher than a standard low-bed trailer. The removable gooseneck trailer adopts the more durable high-strength steel and unique axle, suspension, etc. parts, especially with a powertrain.

Removable Gooseneck VS Low Bed Trailer

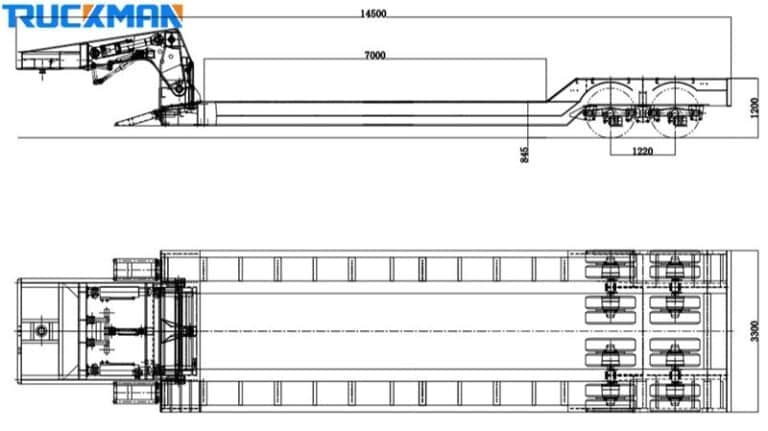

Removable Gooseneck Design Drawing

The 50 ton removable gooseneck trailer design drawing can help customer know the every parts dimension, and ensure that there are no dimensional errors in production. It is also possible for the relevant personnel to confirm and understand the information of the manufactured parts to avoid production errors.

50 Ton Removable Gooseneck Trailer Design Drawing
Low Bed Trailer real image -TRUCKMAN AUTOMOBILE
