SHACMAN X3000 12 Wheel 35000 Liter Water Tanker Truck For Sale

SHACMAN water tanker truck consists of SHACMAN X3000 vehicle chassis system, tank body, water pump, pipeline system, front flush and rear sprinkler, operating table and other components. The power of the water pump comes from the chassis engine, which is output from the chassis engine to the transmission, and then output to the water pump through the drive shaft by the power take-off installed on the transmission. The water pump sprays the liquid in the tank through the pipeline system to realize the functions of front flush and rear sprinkler.

SHACMAN X3000 Specification

Engine: ISME420 30, 420HP, 420HP. Euro 3

Cabin: X3000 model, with one bed, A/C

Gearbox: 12JSD200T-B+QH50, 10F & 2R, with PTO, manual gearbox

Drive Axle: 16T MAN, 2x16000kg,

Tire: 13R22.5, radial tyre, 12+1 pcs

Tank Body: 35000 liter

Fuel Tank: 380L

Dimension: 10650x2580x3550mm

SHACMAN X3000 12 Wheel 35000 liter water tanker truck specification only for your reference, we can manufacture other model water tanker truck basic your request.

Water Tanker Truck Engine

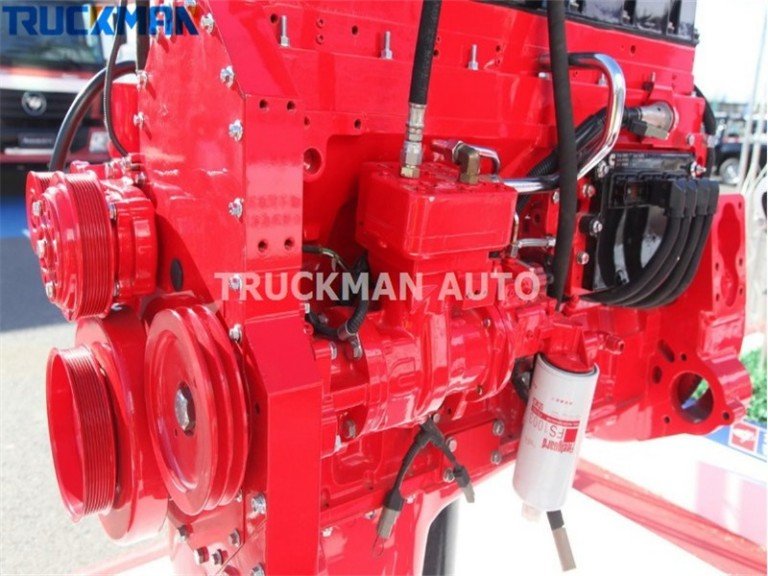

The X3000 water tanker truck uses a CUMMINS 420 horsepower engine that meets Euro III emission standards.CUMMINS 420 horsepower large engine can meet the user’s needs for fast, safe and efficient transportation, and it is powerful and very suitable for heavy trucks to start heavy loads and go up long slopes. CUMMINS uses a patented fuel system to ensure more adequate air intake, improve engine efficiency, further improve combustion, reduce engine fuel consumption, and achieve high fuel economy.

SHACMAN X3000 Water Tanker Truck Function

The spraying device of X3000 water tanker truck is generally used to wash the streets, remove dust and cool down. The spraying direction and angle can also be changed by adjusting the nozzle thread. The high altitude spray gun on the operating table can be used for urban and rural and emergency fire trucks, and can also be used to water the trees on both sides of the greenway. The shower nozzle can remove the dust raised by the water spray and play a role in cleaning the air.
