SHACMAN H3000 Concrete Mixer Truck

Home » SHACMAN Mixer Truck » SHACMAN H3000 Concrete Mixer Truck

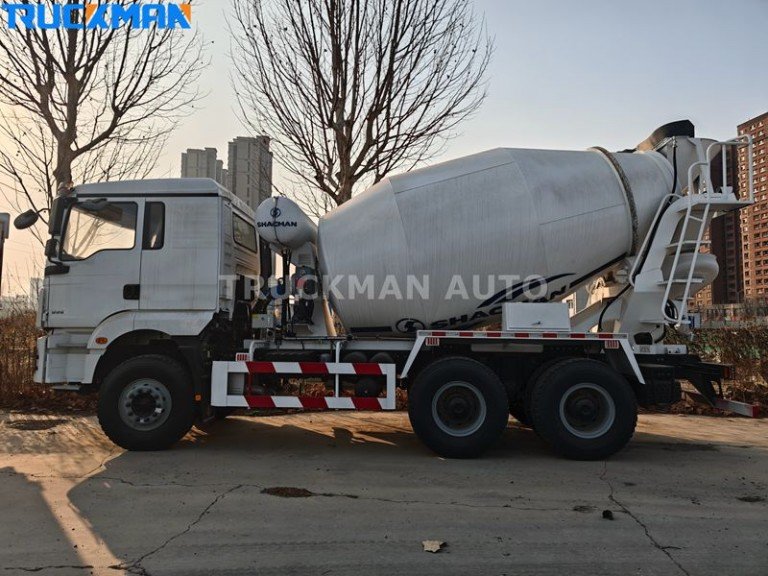

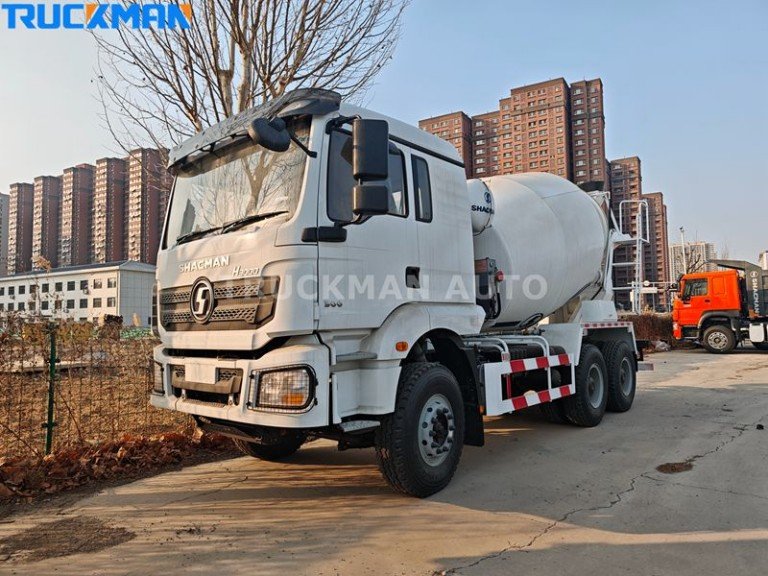

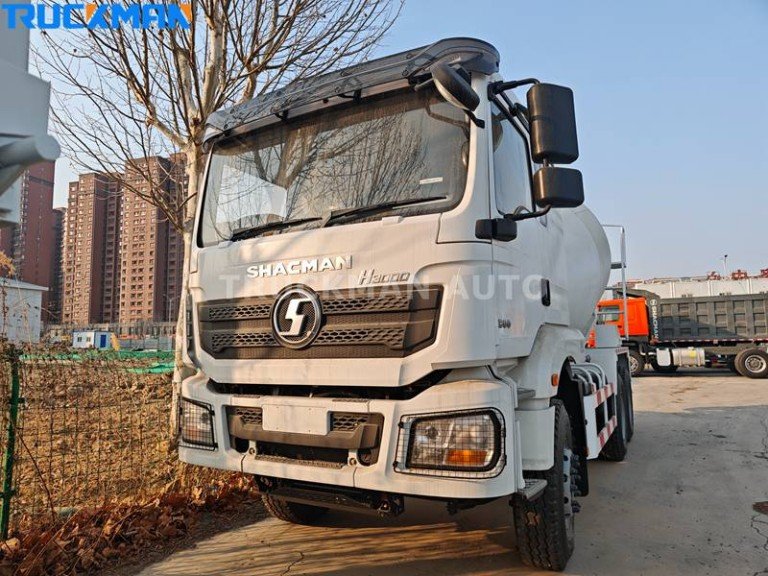

SHACMAN H3000 Concrete Mixer Truck For Sale

SHACMAN H3000 concrete mixer truck is equipped with Weichai WP10.300E22 engine with 300 horsepower. It is powerful and can easily cope with various complex road conditions and heavy-load transportation tasks. It is equipped with FAST brand 10JSD180 gearbox, which has flexible shifting and high transmission efficiency. It can efficiently transmit the power of the engine to the wheels to ensure the stable power output of the vehicle during driving. At the same time, it is equipped with HANDE 16T double-stage reduction bridge, which can withstand 1.3 million impacts without breaking, has strong load-bearing capacity and high reliability, and can meet the heavy-load transportation needs of mixer trucks.

Specification

Product Name: SHACMAN H3000 Concrete Mixer Truck

Application: Construction Engineering

Engine: WP10.300E22, 300HP, Euro 2

Gearbox: 10JSD180+QH50, 10F/2R

Cabin: H3000 model, with one bed, A/C

Drive Axle: 16T, 2x16000kg

Tire: 12.00R20, 10+1pcs

Fuel Tank: 400L

SHACMAN H3000 Concrete Mixer Truck specification only for your reference, we will recommend other model truck basic your request.

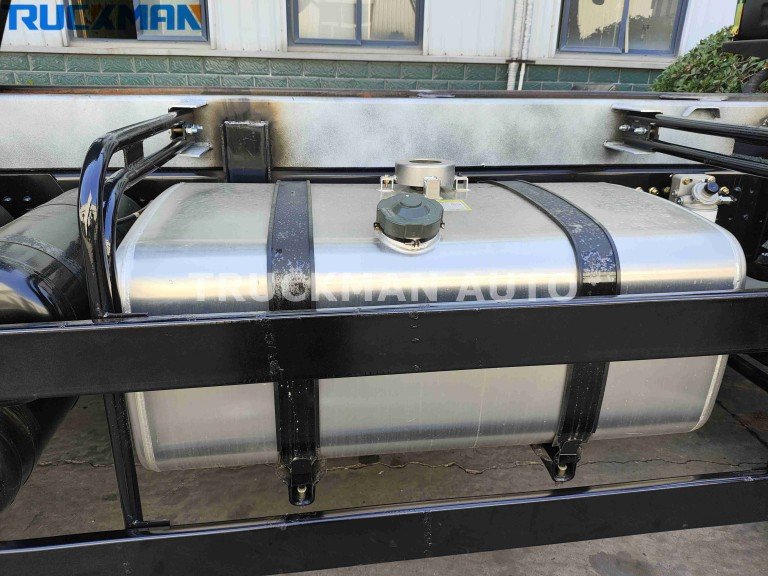

SHACMAN H3000 Mixer Truck Fuel Tank

SHACMAN H3000 concrete mixer truck uses aluminum alloy fuel tank. In some areas, the oil quality is poor, and diesel may be mixed with water and other impurities. In the long-term use of iron fuel tanks, the water in the diesel will slowly corrode the fuel tank and produce a lot of rust. These impurities will affect the diesel fuel system. The biggest advantage of aluminum alloy fuel tanks over iron fuel tanks is good corrosion resistance, which is very suitable for high-pressure common rail engines that require high fuel cleanliness.

SHACMAN H3000 Concrete Mixer Truck Tank Body

The tank of SHACMAN H3000 concrete mixer truck is usually cylindrical, which is conducive to the uniform distribution of concrete during transportation, reducing local stress concentration, and facilitating the installation of mixing blades and the mixing, feeding and unloading of concrete. There are two spiral blades spaced 180° apart on the inner wall of the tank, forming a spiral channel with the cylinder wall. The blades are curved, which helps the discharge performance of low-slump concrete, and can cause the concrete to move in opposite directions during mixing, realizing the mixing, feeding and unloading functions.
