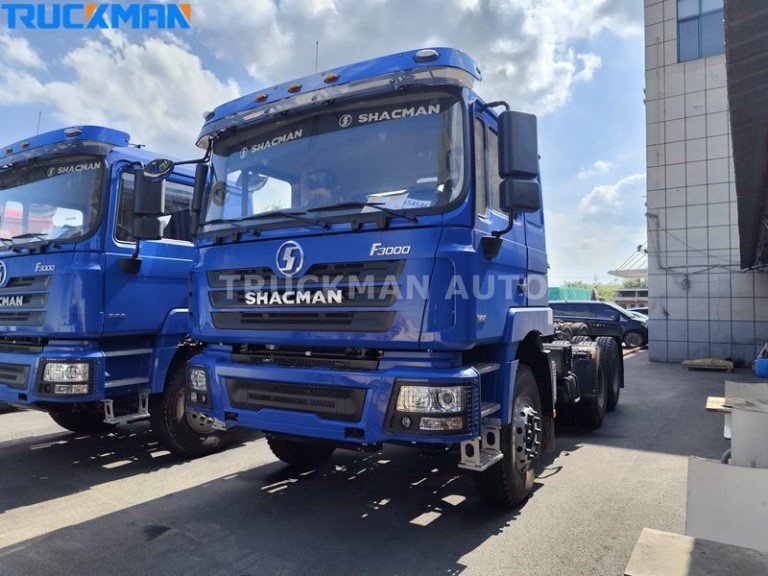

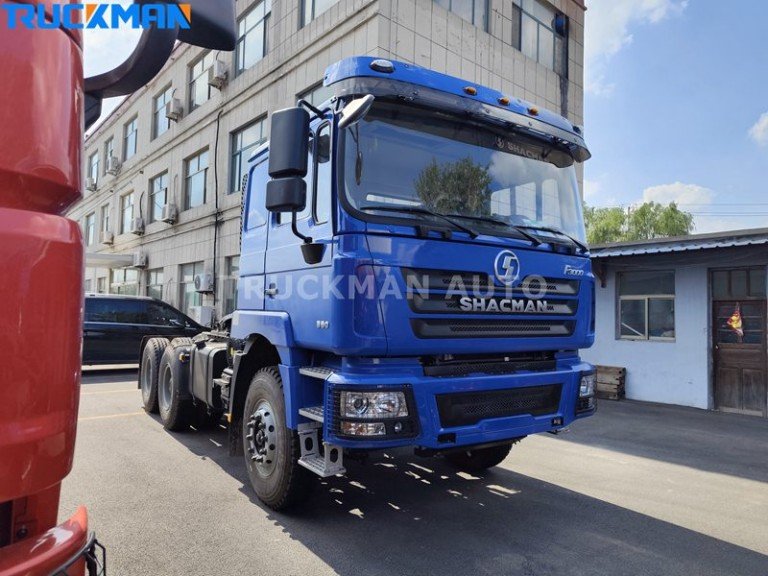

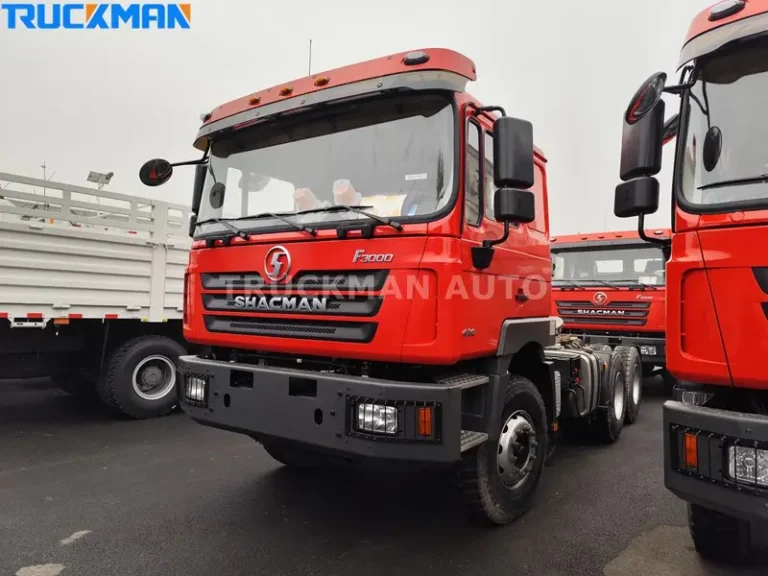

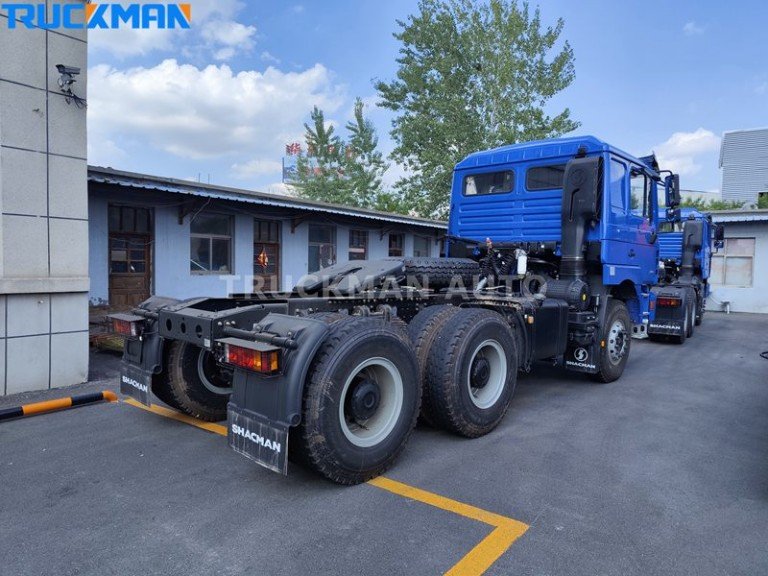

SHACMAN F3000 6x4 Truck Head For Sale

The SHACMAN F3000 truck head has been upgraded many times and adopts SHACMAN unique “golden combination” matching method: WEICHAI engine, FAST transmission and HANDE MAN technology drive axle, which is suitable for long-distance and high-speed transportation of heavy trucks. The cab is equipped with a sleeper, which can provide daily rest for the driver and reduce driving fatigue. The enlarged and widened fenders can effectively block the splash of mud and water, prevent the damage of vehicle parts and improve the service life.

Specification

Product Name: SHACMAN F3000 6×4 Truck Head

Application: Cargo transportation

Engine: WP10.380E22, 380HP.

Cabin: With one bed, A/C

Gearbox: 10 forward and 2 reverse gear

Tire: 12.00R20, 10+1 pcs

Color: Optional

Fuel Tank: 400L

Tractor Pin: 90#, 3.5 inch

SHACMAN F3000 6×4 Truck Head specification only for your reference, we will recommend other model truck head basic your request.

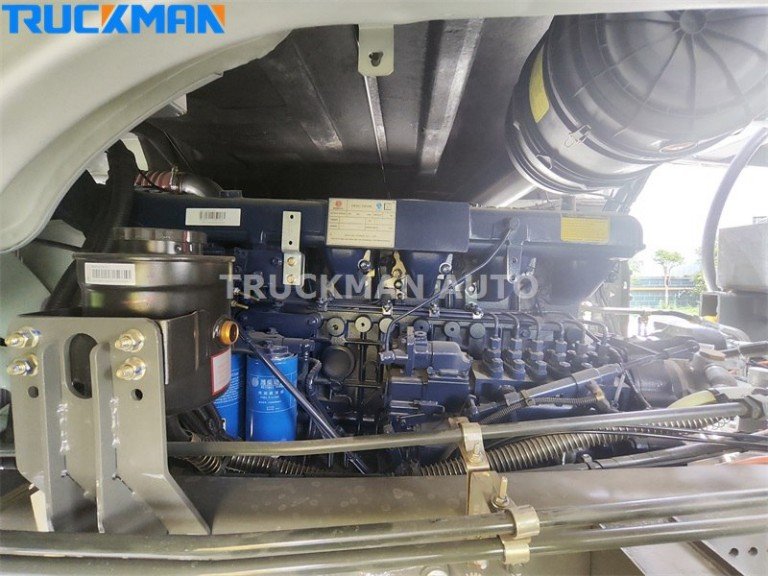

Truck Head Engine

The truck head adopts WEICHAI engine, with high strength design of structural parts, long life design of seals and high wear-resistant plating design of moving parts, so that the WEICHAI engine can still maintain good performance in a long time and high intensity working environment, with a life span of 1.8 million kilometers and an oil change cycle of more than 120,000 kilometers, which can also effectively help the user to reduce the cost of maintenance and enhance the operating income. Powerful, low-speed and high torque of the same displacement is ahead of competitors. The engine is equipped with a number of fuel consumption reduction technologies, re-optimization of the combustion system, high boost efficiency, fuller combustion, better fuel economy and low fuel consumption.

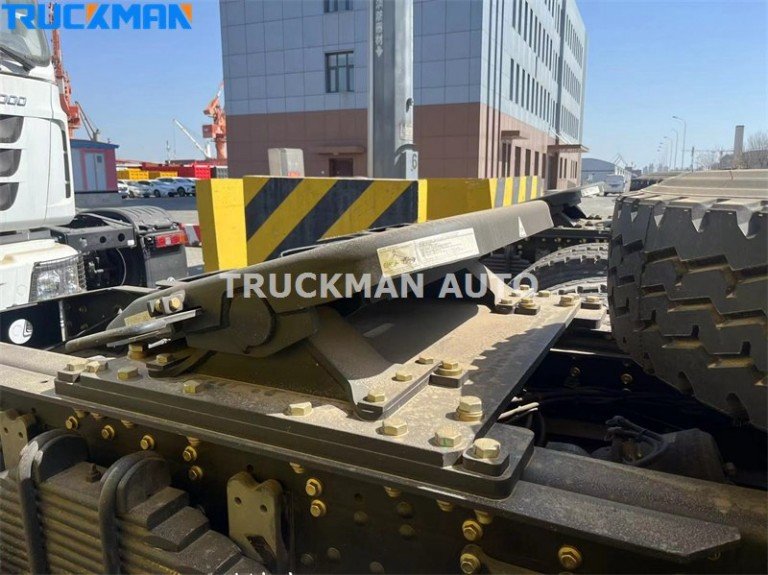

SHACMAN F3000 6x4 Truck Head Saddle

The saddle of the truck head is a swinging horseshoe-shaped wear-resistant steel plate, this component is mainly used for connecting the trailer, the pressure of the trailer is applied to this flat plate, which has a notched semi-circular hole in the centre, the walls of which are made of impact-resistant forged steel parts. Below the notched half-hole in the centre there is a rotatable U-shaped plate, behind which there is a forged steel gear plate that can be pumped from side to side in the guide slot. The main trailer pin is positioned between the U-shaped plate and the half-hole.The saddle mainly consists of saddle body, bracket, a traction rod, inclined iron and locking hook. The saddle of this tractor truck is made of 90#,which is 3.5 inches and can carry 50-100 tonnes of cargo.
