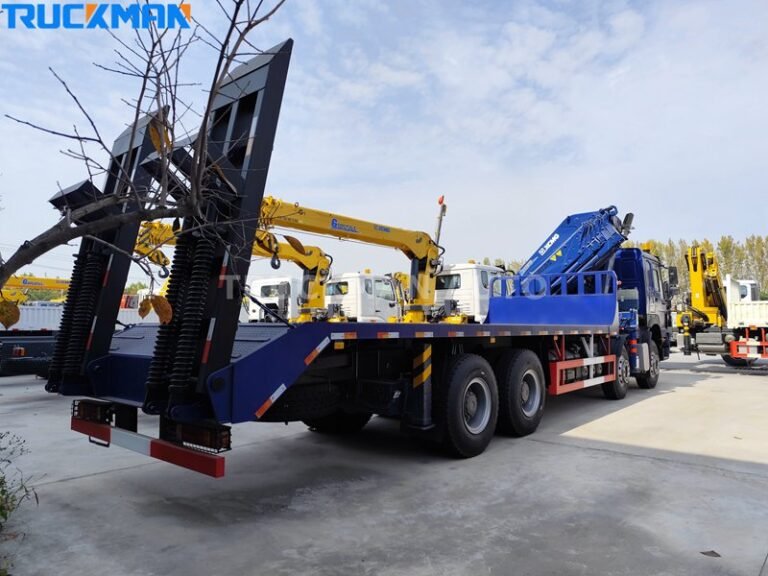

HOWO 12 Wheel Truck Mounted Crane With Ladder

Home » Howo Crane Truck » HOWO 12 Wheel Truck Mounted Crane With Ladder

HOWO 12 Wheel Truck Mounted Crane For Sale

The truck crane is a special vehicle modified from an ordinary truck. This design enables the vehicle to not only carry cargo but also to carry out cargo lifting operations when needed, thus achieving the goal of one vehicle with multiple uses. The chassis adopts the HOWO series special chassis, coupled with the WEICHAI 400HP high-horsepower engine and the XCMG folding boom, giving the vehicle excellent loading and lifting capabilities.

Specification

Engine: WP12.400E201 Euro 2

Cabin: HW76, with one sleeper, A/C

Gearbox: HW19710+HW70Power stripper, 10F & 2R, manual gearbox

Drive Axle: MCX16ZG, 2*16000KG

Tire: 12.00R20, radial tire, 12+1 pcs

Fuel Tank: 400L

Crane：XCMG Fold-able Crane

HOWO 400HP truck crane specification only for your reference, we can manufacture other model truck basic your request.

HOWO 12 Wheel Truck Mounted Crane Advantages

Since the truck crane combines the crane and the truck into one, it does not need to be assembled and disassembled like a traditional crane. It can be quickly transferred to the construction site, greatly improving work efficiency. It can flexibly travel and operate in complex environments such as narrow streets and construction sites. Depending on the model and configuration, the lifting capacity of HOWO truck crane can range from a few tons to dozens of tons. Users can choose the appropriate model according to their actual needs to meet the lifting tasks of different scales and types of goods.

Features of HOWO 12 Wheel Truck Mounted Crane

This vehicle uses XCMG’s boom, which adopts a folding design. The boom can be retracted to 70% of its original volume, which is suitable for narrow space operations, such as warehouses and construction sites. Through the combined action of multiple hydraulic cylinders, the hoisting task can be completed quickly, and it supports the installation of various auxiliary tools (such as work platforms, hanging baskets, etc.) to improve work efficiency. It supports the adaptive structure of concave and convex ground, can cope with complex terrains such as multi-story warehouses and temporary construction sites, and has an IP65 waterproof rating, which is suitable for outdoor rainy season operations.
