FOTON Vacuum Sewage Truck For Sale

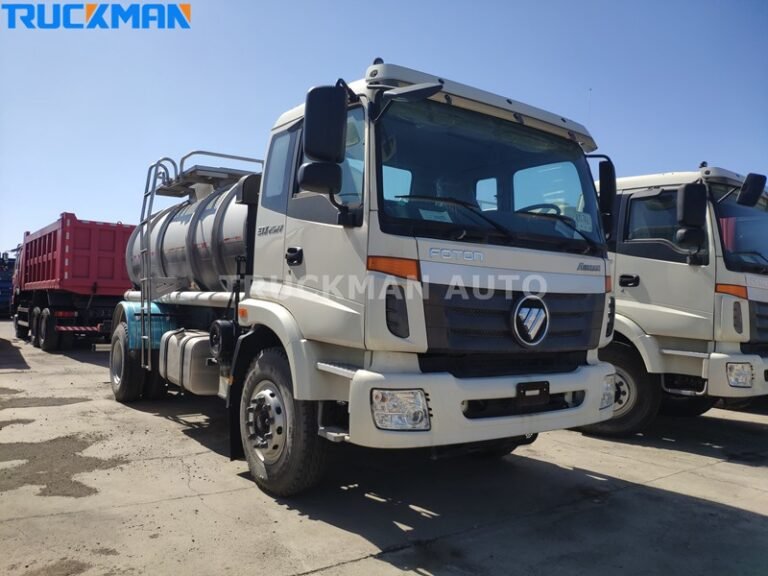

The FOTON vacuum sewage truck is equipped with a high-power water ring pump with a suction range of 7-9 meters. It can quickly and effectively suck up sludge, feces and other waste from sewers, septic tanks, etc., greatly improving operational efficiency. The FOTON vacuum sewage truck also has a high-pressure cleaning function. The high-pressure water generated by the high-pressure plunger pump is used to powerfully clear and flush underground sewage pipes. It can completely remove all kinds of silt blocking the sewers and dirt attached to the pipe walls, and suck the silt and debris from the sewer into the sludge tank on the truck, achieving cleaning and sewage suction in one truck.

Specification

Product Name: FOTON Vacuum Sewage Truck

Application: Construction Engineering

Engine: ISGe3-380, 380HP, Euro 3

Gearbox: 12JSD180, 12F/2R

Cabin: with one bed, A/C

Drive Axle: 16 ton, 1x16000kg

Tire: 315/80R22.5, 6+1pcs

Fuel Tank: 350L

FOTON Vacuum Sewage Truck specification only for your reference, we will recommend other model truck basic your request.

Vacuum Sewage Truck Tank Body

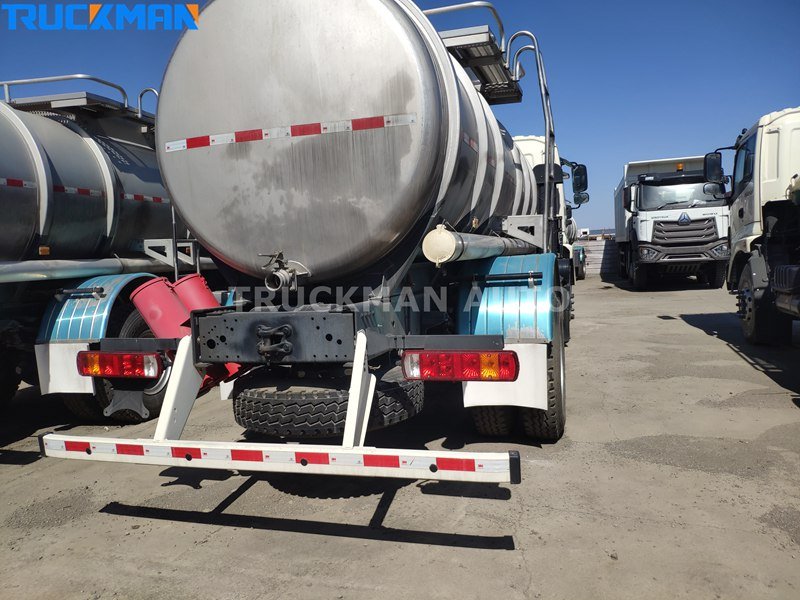

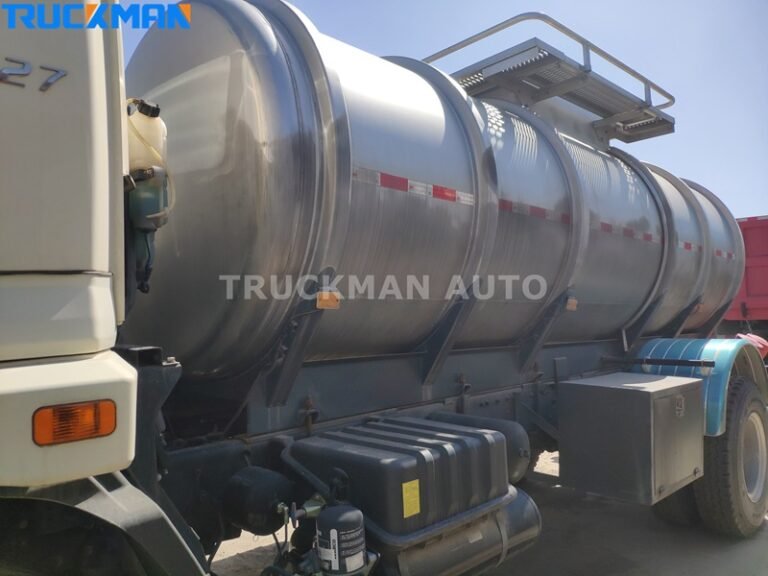

The tank head of the FOTON vacuum sewage truck is pressed and formed in one step, with double-top self-unloading devices in the middle on both sides. The total volume of the tank is large, and the volume of the water tank and sewage tank can be freely allocated, which can load more sewage and reduce the number of transportation times. The tank body of the FOTON vacuum sewage truck is made of stainless steel or carbon steel. Carbon steel has high strength and relatively low cost, and can withstand a certain amount of pressure and impact; stainless steel has better corrosion resistance, which can effectively prevent the dirt inside the tank from corroding the tank body and extend the service life of the tank.

FOTON Vacuum Sewage Truck Advantage

FOTON vacuum sewage trucks can be widely used for the suction, dredging, and transportation of sewage sludge, as well as for suctioning feces and other liquid waste. They can also be used for the suction, transportation, and discharge of sludge in sewage tanks of petrochemical plants. They are suitable for cities of all sizes, chemical industries, factories, and mining enterprises. FOTON vacuum sewage trucks are equipped with safety devices such as a feces sight glass and an overflow valve. The sight glass allows for easy observation of the sewage situation in the tank, and the overflow valve prevents sewage from overflowing, ensuring safe operations.
