FOTON 10 Cubic Concrete Mixer Truck

Home » FOTON 10 Cubic Concrete Mixer Truck

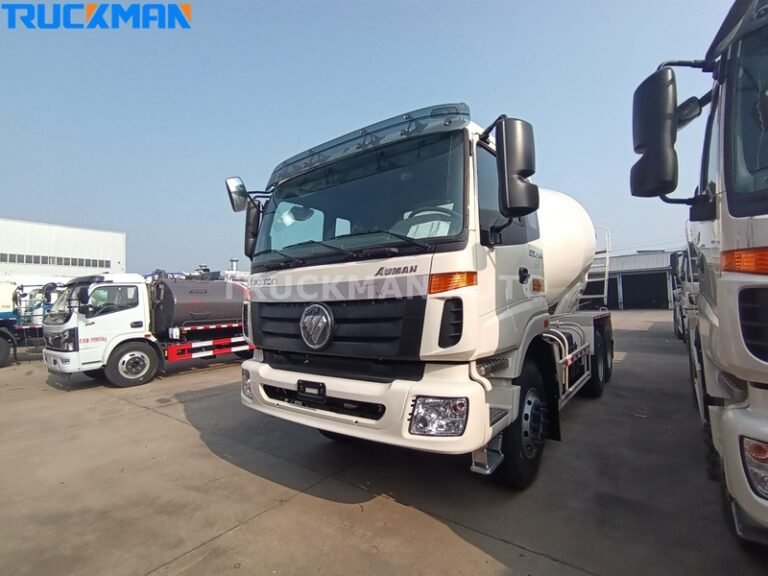

FOTON 10 Cubic Concrete Mixer Truck For Sale

The FOTON concrete mixer truck is equipped with a powerful high-horsepower engine, capable of handling complex road conditions and ensuring stable operation even under full load, meeting the demands of long-term, high-intensity transportation tasks. It is also equipped with advanced transmissions, such as the FAST 12-speed transmission, which offers high transmission efficiency and smooth shifting. The transmission can select the appropriate gear according to different road and working conditions, keeping the engine in optimal working condition and improving fuel economy and vehicle performance.

Specification

Product Name: FOTON 10 Cubic Concrete Mixer Truck

Application: Construction Engineering

Engine: ISGe3-380, 380HP, Euro 3

Gearbox: 12JSD180, 12F/2R

Cabin: with one bed, A/C

Drive Axle: 16 ton, 2x16000kg

Tire: 315/80R22.5, 10+1pcs

Fuel Tank: 350L

FOTON 10 Cubic Concrete Mixer Truck specification only for your reference, we will recommend other model truck basic your request.

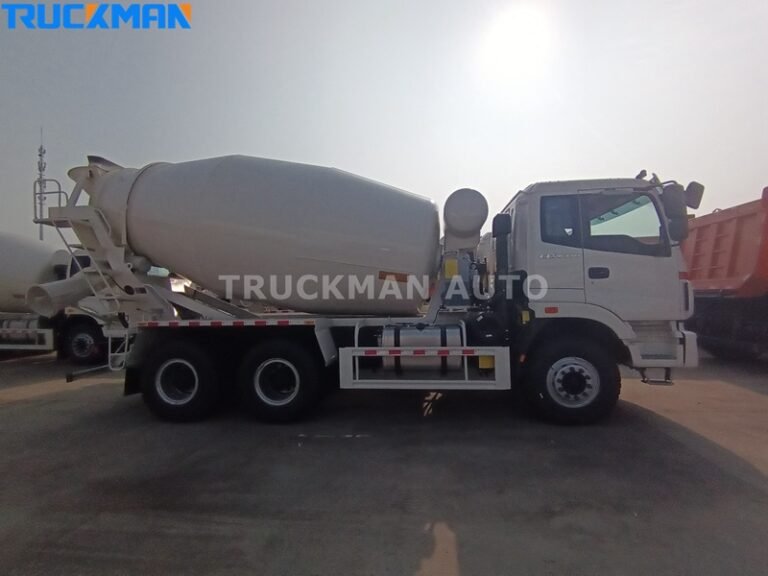

Concrete Mixer Truck Tank Body

The FOTON concrete mixer truck utilizes variable-angle, double-logarithmic helical blades, coupled with a mixer and flow holes. Simulation experiments have shown that the truck prevents segregation and accumulation during the mixing process, ensuring concrete quality and performance. The FOTON concrete mixer truck utilizes elevated and extended blades, increasing its load capacity by up to 1 cubic meter compared to similar trucks on steeper slopes. This improves volume utilization by approximately 10%, resulting in higher transport efficiency and increased profits.

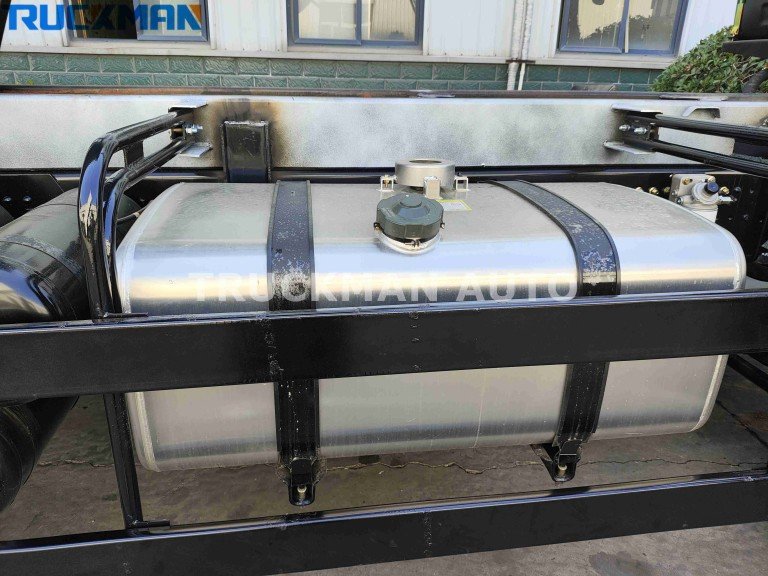

Mixer Truck Fuel Tank

The FOTON concrete mixer truck uses a 350L aluminum alloy fuel tank. Aluminum alloy has a series of excellent properties, such as low density, light weight, high strength, good elasticity, good impact resistance, corrosion resistance, easy surface coloring, good processability and high recyclability. In addition, the aluminum alloy fuel tank can greatly reduce the vehicle’s weight, thereby reducing fuel consumption, and has the advantages of good fuel economy and low emissions.
