BEIBEN Concrete Mixer Truck

BEIBEN Concrete Mixer Truck For Sale

The concrete mixer truck features an efficient engine and reliable powertrain, providing strong power output and easily handling a variety of road conditions and working conditions. Equipped with a highly efficient mixing tank, it mixes concrete quickly and evenly, maintaining quality and uniformity. The spacious and comfortable cab design provides an excellent driving experience and operating space, effectively reducing driver fatigue. The optimized vehicle structure and efficient powertrain and transmission system reduce fuel consumption and improve economy.

BEIBEN Concrete Mixer Truck

Specification

Product Name: BEIBEN Concrete Mixer Truck

Application: Concrete transportation

Engine: WP10.380E22, 380HP.

Cabin: With one bed, A/C

Gearbox: 10 forward and 2 reverse gear

Tire: 12.00R20, 10 pcs

Color: Optional

Fuel Tank: 400L

Tank Body: 10 cubic meters

BEIBEN Concrete Mixer Truck specification only for your reference, we will recommend other model concrete mixer truck basic your request.

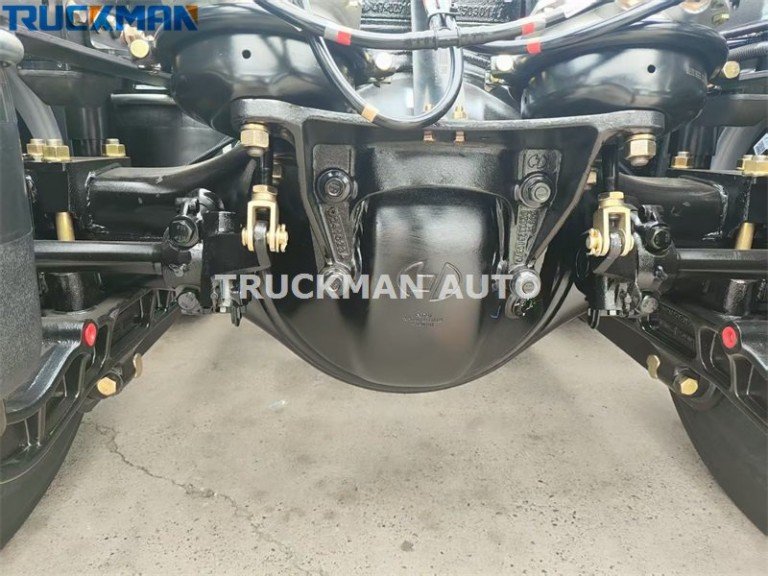

Concrete Mixer Truck Axle

The concrete mixer truck utilizes a BEIBEN-branded, dedicated axle. BEIBEN axles feature high-quality housing materials, excellent casting processability, and high-strength gear pairs, fully ensuring vehicle reliability. The housing is constructed of ductile iron, offering high strength, excellent rigidity, and resistance to deformation under heavy loads. This excellent casting processability reduces defects, ensures stable performance, and guarantees load-bearing capacity. The main reducer’s spiral bevel gear pair utilizes a constant-height tooth design, ensuring high gear strength.

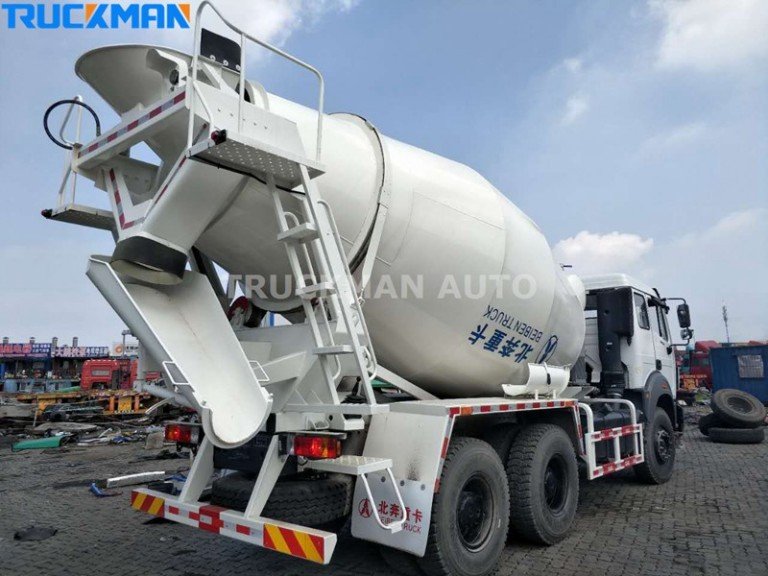

Mixer Truck Tank Body

The concrete mixer features a 10m³ tank body made of specialized materials and equipped with a hydraulic pump, motor, and reducer. It features a three-in-one operating system (the tank can be operated in both forward and reverse directions from both sides of the cab and rear of the vehicle, reducing operator workload and facilitating operation). The mixing blades are equipped with wear-resistant inserts (increasing their service life). Wear-resistant pads are added to the inlet and outlet hoppers (extending their service life) and are manufactured using an arc-shaped mold (elegant, effectively reducing aggregate buildup and facilitating cleaning). A perforated non-slip ladder ensures operator safety during entry and exit. LED rear working and side lights are also installed for safety, environmental friendliness, and energy efficiency.

Concrete Mixer Truck Tank Body

BEIBEN Concrete Mixer Truck
