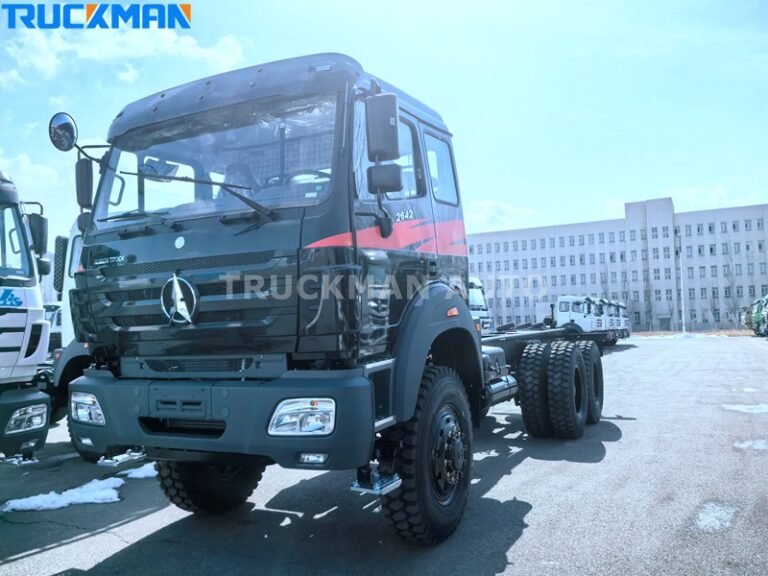

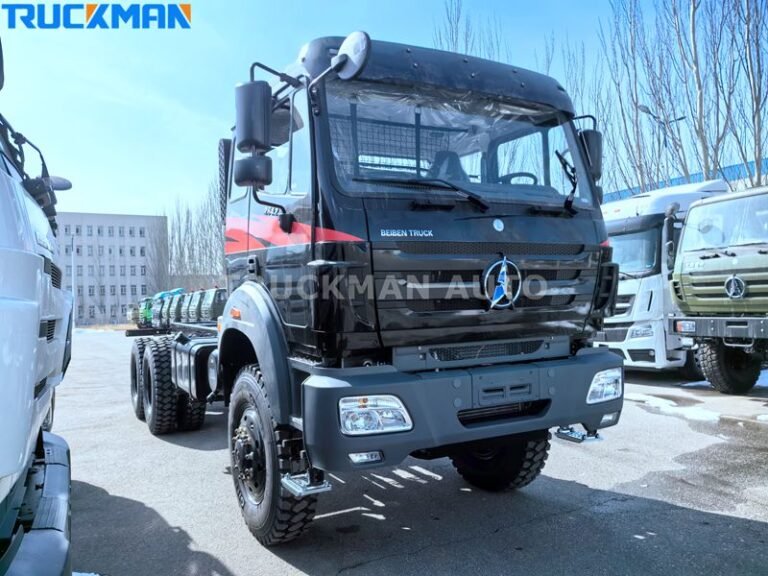

BEIBEN 2638 6x4 Cargo Truck Chassis For Sale

The BEIBEN cargo truck chassis, equipped with a WEICHAI engine, a FAST transmission, and MERCEDES-BENZ axles, boasts powerful power, high torque transmission, and a 10% increase in gradeability. It easily handles heavy-load starting and climbing on both plains and mountainous terrain. The BEIBEN cargo truck chassis also utilizes MERCEDES-BENZ leaf springs, a technology exclusive to Beiben heavy-duty trucks. These reverse-back leaf springs bend upward and inward when unladen, then straighten when loaded. This reduces the leaf spring arc height, improves maneuverability, and lowers the vehicle’s center of gravity for enhanced stability.

Specification

Product Name: BEIBEN 2638 6×4 Cargo Truck Chassis

Application: Construction Engineering

Engine: WP10.380E32, 380HP, Euro 2

Gearbox: 12JS200T mechanical type, 12F/2R

Cabin: NG80B, with one bed, A/C

Drive Axle: 13 ton, 2x13000kg

Tire: 12R22.5, 10+1pcs

Fuel Tank: 400L

BEIBEN 2638 6×4 Cargo Truck Chassis specification only for your reference, we will recommend other model truck basic your request.

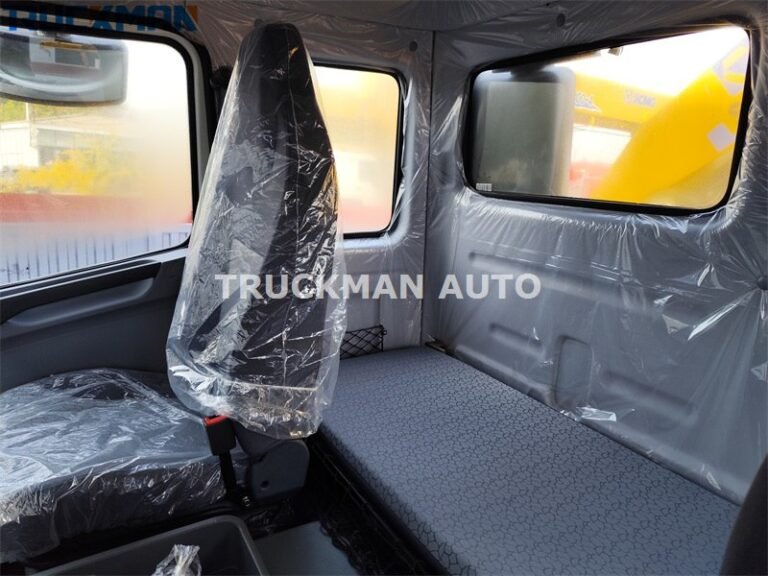

Cargo Truck Chassis Cabin

The BEIBEN cargo truck chassis features a cab with a sturdy structural design. The cab is constructed from high-strength special steel plates, which offer high strength and strong impact resistance, effectively ensuring a safe and comfortable interior. The cab features a collapsible steering mechanism and a collapsible structure in the event of a severe frontal collision, further reducing impact energy and ensuring maximum driver safety. The BEIBEN NG80B cab offers excellent visibility, featuring a large-curvature, panoramic, laminated tempered windshield and low-deformation mirrors. This all-around view increases the visible area by 20%, providing a wider field of view and eliminating blind spots, enhancing active safety.

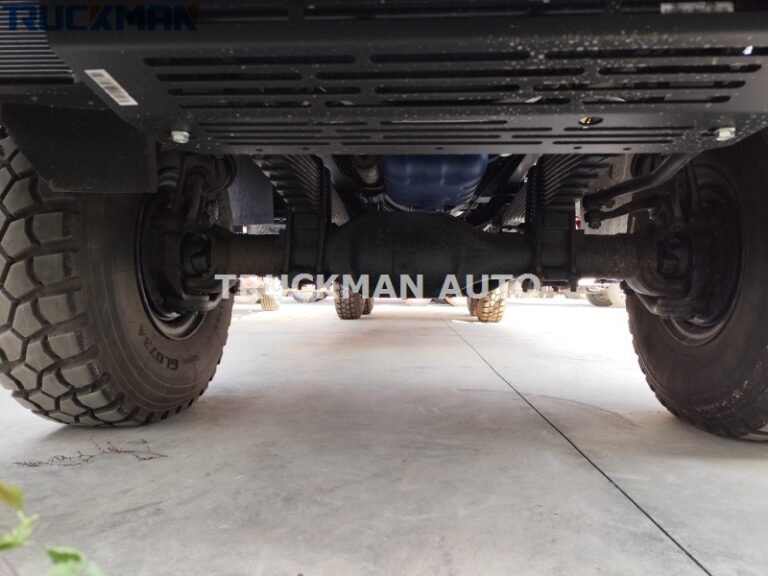

BEIBEN 2638 6x4 Cargo Truck Chassis Axle

The BEIBEN cargo truck chassis utilizes MERCEDES-BENZ technology for its 7-ton front axle and 13-ton mid- and rear axles, meeting various heavy-duty transport needs. The axle housing is constructed of ductile iron, offering high strength and rigidity. It resists deformation even under heavy loads, ensuring the precise fit and longevity of gears, bearings, and other transmission components. The BEIBEN cargo truck chassis utilizes advanced MERCEDES-BENZ technology to transmit high torque, ensuring efficient operation in all conditions and achieving high haul speeds.
