30000 Liters Fuel Tanker Trailer

30000 Liters Fuel Tanker Trailer For Sale

The 30000 liters fuel tanker trailer can be used to transport different fuels, including gasoline, diesel, jet fuel, and other petroleum products. It is designed to meet the specific requirements and safety standards of fuel transportation, ensuring these products’ secure and efficient delivery.

30000 Liters Fuel Tanker Trailer For Sale-Tank Trailer


Detail Specification
Axle 2 axles, 2x16000kg, ZY brand
Tire 12R22.5, 8 pcs, LINGLONG brand
Support Leg 28 tons, JOST brand
Kingpin 2 inch heavy duty, JOST brand
Brake System WABCO brand brake system
Suspension Mechanical leaf spring
Material Carbon steel or aluminum alloy
Tanker Body 30,000 liter, 6 compartment

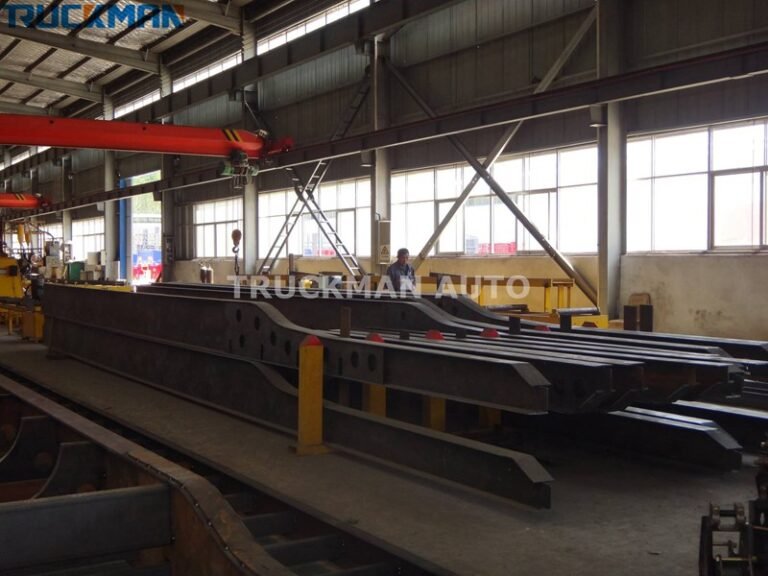

Tanker Trailer Main Beam

The 30000 liter tanker trailer main beam adopts the manganese plate, Q355 model. Thickness is bottom 14mm, middle 8mm, adopt the automatic submerge welding tech, welding seam is beautiful and more durable. The tanker body will be assembled with chassis by the high strength bolt and some U bolts: frame structure, reasonable force, lightweight, low cost.

Fuel Tanker Trailer Main Beam

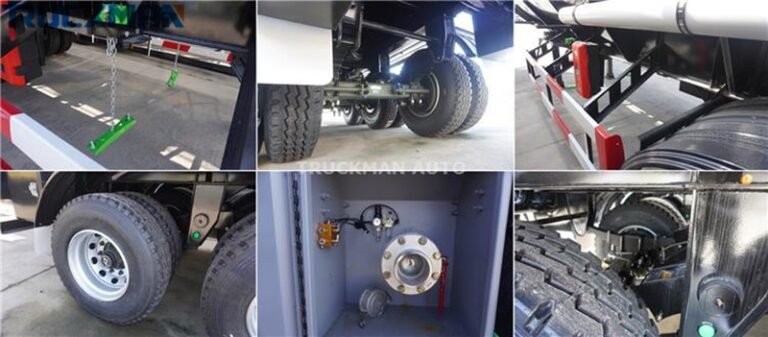

Tanker Trailer Optional Parts

The fuel tanker trailer can optional many parts to meet the working demand, like air suspension. This part is perfect for saving fuel consumption due to the low self-weight. When empty loading, the front axle can lift and only use the rear axle for driving; it can keep fuel consumption and the tire and reduce tire wear.

30000 Liters Fuel Tanker Trailer Optional Parts

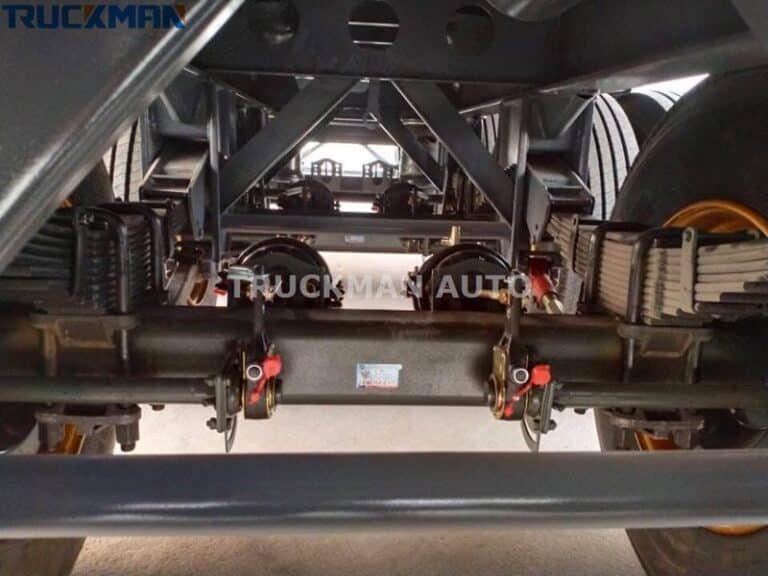

30000 Liters Fuel Tanker Trailer Brake System

30000 liters fuel tanker trailer has three main parts: an emergency relay valve, ABS, and brake air chamber.

Emergency relay valve: It is the core component of the whole trailer braking system, which is compatible with the relay valve, distribution valve, check valve, quick release valve, and many other functions at the same time, and the trailer equipped with emergency relay valve can significantly shorten the trailer braking lag time.

ABS (Anti-locked Braking System): It’s an anti-locking braking system, an anti-skid, anti-locking, and other advantages of automobile driving safety control system. It ensures the stability of the braking direction of the car in the braking process and prevents the body from skidding and running away.

Brake chamber: The primary function of the brake air chamber is to transform the pressure of compressed air into the mechanical force that makes the brake camshaft rotate to achieve the braking action.

Fuel Tanker Trailer Brake System

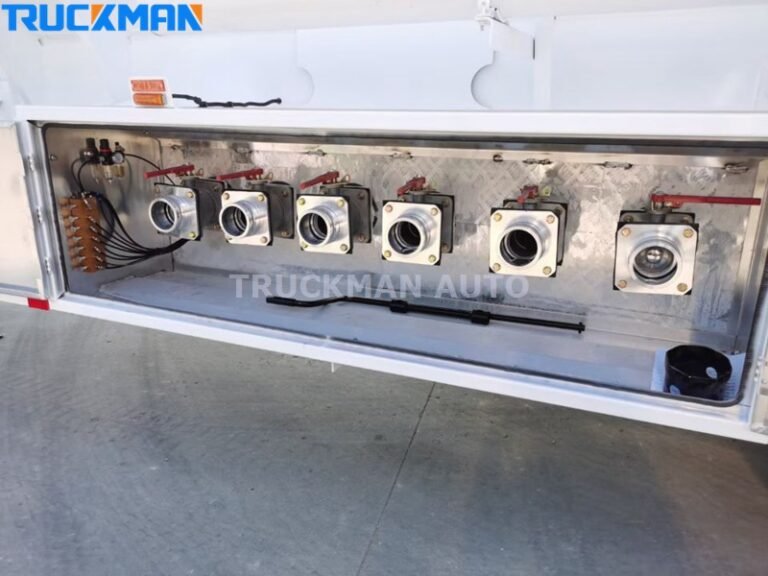

30000 Liters Fuel Tanker Trailer Discharge Valve

The fuel tanker trailer discharge valve is at the bottom of its side for quick oil discharge. The front connection is by American API02Rp1004 standard, which makes it easy to connect with the unloading hose head. Hydrodynamically designed internal structure minimizes internal pressure during high flow rates. The outlet adopts a flat-bottomed structure, safe and reliable, with no oil leakage when the joint is dismantled. The quick oil discharge hose connector is designed with a 70-degree inclination, which is convenient for hose connection and effectively improves the service life of the hose.

Tanker Trailer Discharge Valve
