Side Loader Trailer

Side Loader Trailer For Sale

The side loader trailer is a special container semi-trailer that also functions as a crane and can lift containers onto the vehicle itself. It is very suitable for some lack of lifting sites, such as wharves, warehouses, yards, and so on. It is easy and quick to operate, saves time and effort, and saves customers the cost of renting a crane. With its crane lifting capacity of 37 tonnes, the XCMG brand, with its stable quality and proven technology, is very popular.

Side Loader Container Trailer for sale

Side Loader Container Trailer Specification

Detail Specification
Axle 3 axles, 3x13000kg, ZY brand
Tire 12R22.5, 12 pcs, TRIANGLE brand
Support Leg 28 tons, JOST brand
Kingpin 2 inch heavy duty, JOST brand
Brake System WABCO brand brake system
Suspension Mechanical leaf spring
Material Manganese steel
Container Lock 12 pcs
Crane 37 tons
Dimension 14000x2500x4080mm

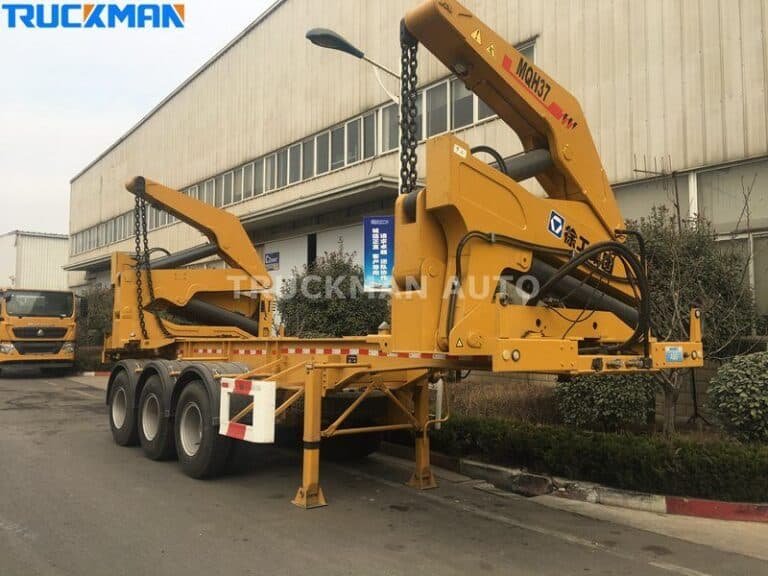

Side Loader Trailer Crane

The Side Loader Container Trailer crane lifting capacity is 37 tons, and the model is MQH37A, XCMG brand. With large lifting capacity, far operating range, a wide range of applications, good versatility, and accompanied by loading and unloading security capacity, etc. Here is the detail for the crane:

The maximum span of the outrigger is 3200mm, the complete working range is 4000mm, the maximum outer height is 2490mm, the maximum outline height is 2500mm, the maximum outline thickness is 1020mm, the maximum pressure of the hydraulic system is 28Mpa, the self-weight is 7000kg.

Side Loader Trailer Crane

Side Loader Trailer Axle Detail

Due to the fixed load capacity of the containers, our side loader trailer uses standard load axles. For example, FUWA brand 13 tonnes axle, BPW and ZY brand 12 tonnes axle, etc. These brand axles are made of high-strength steel, which improves the components’ strength and stiffness and reduces the axles’ weight. Optimized design to reduce the number and weight of members, e.g., monoblock casting design minimizes the number of components at the joints. Precision machining and optimized surface treatment to improve corrosion and wear resistance while reducing the weight and cost of surface treatment.

Sideloaders Trailer Axle Detail

Optional Parts

1. Optional tractor gearbox to pick up the power; can also bring its diesel engine power unit.

2. The crane can slide back and forth, start working after the slide stops, and lift standard 20′ or 40′ foot containers.

3. Manoeuvring mode is mainly wireless and remote-controlled, with a comprehensive operating field, retaining manual manipulation.

4. With a diesel engine power unit, it can realize no-load and heavy-load state can be speed-regulated.

Side Loader Trailer Optional Parts

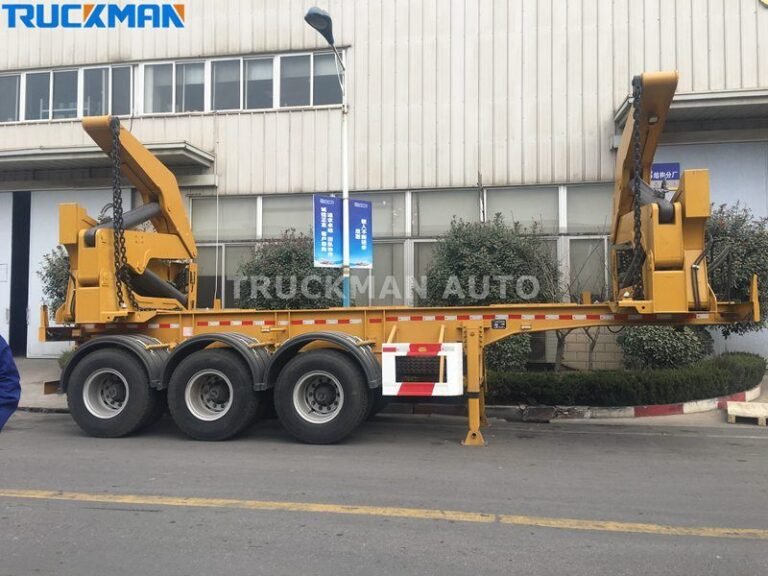

Sideloaders Trailer Advantages

1. The vehicle has a long average, trouble-free working time, stable and reliable performance, compact and reasonable layout, beautiful and fashionable, easy to use, and easy to maintain.

2. Adopts electro-hydraulic load adaptive double pump double branch circuit patent technology to ensure the stability of crane speed switching

3. The patented technology of automatic storage and intelligent control of the hoist chain rotary lock improves the comfort of operation and the safety of the whole vehicle.

4. Greatly improve the efficiency of automated container loading, unloading, and transferring in ports, logistics, and so on, with an increase of up to 28%.

Side Loader Container Trailer for sale
